The MOV-07D560K is a 56V metal oxide varistor with a clamping current of 2.5A and a maximum operating temperature of 85°C. It is available in a radial package with a diameter of 7mm and a width of 6.8mm. The varistor is suitable for overvoltage and ESD protection applications and is compliant with RoHS regulations.
PackageRadial
Capacitance890pF
MountingRadial, Through Hole
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Bourns MOV-07D560K datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Bourns MOV-07D560K technical specifications.
General
| Capacitance | 890pF |
| Package/Case | Radial |
| Clamping Current | 2.5A |
| Clamping Voltage | 110V |
| Diameter | 7mm |
| Energy | 3.1J |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Surge Current | 250A |
| Max Varistor Voltage | 62V |
| Min Varistor Voltage | 50V |
| Max Voltage Rating (AC) | 35V |
| Max Voltage Rating (DC) | 45V |
| Mount | Radial, Through Hole |
| Number of Circuits | 1 |
| Package Quantity | 2000 |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Tolerance | 10% |
| Varistor Voltage | 56V |
| DC Rated Voltage | 62V |
| Width | 6.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Bourns MOV-07D560K Datasheet
Download the complete datasheet for Bourns MOV-07D560K to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

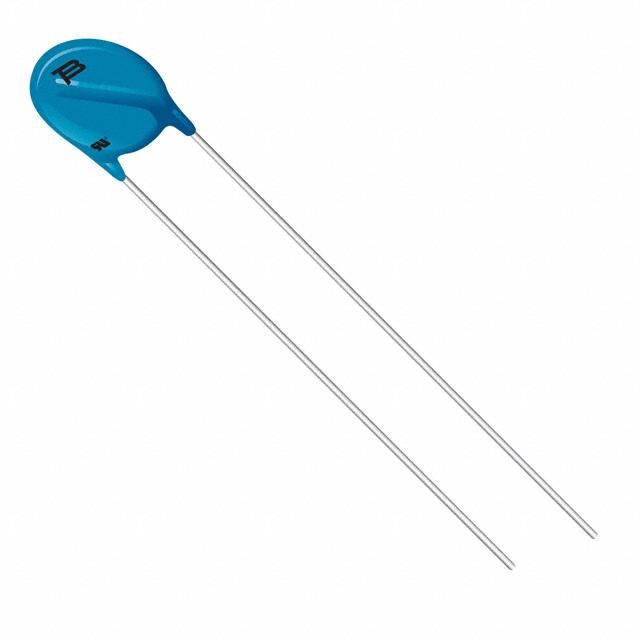

Product Images
