Radial leaded varistor for general applications, featuring a 14mm diameter and 180V varistor voltage. This component offers a 150V DC rated voltage and 115V AC rated voltage, with a clamping voltage of 300V at 50A. It handles a 50A current rating and 4.5kA surge current, storing 50 Joules of energy. Operating across a -40°C to 85°C temperature range, it includes a 7.5mm lead pitch and 1.1nF capacitance.
PackageMetal
Capacitance1.1nF
Current Rating50A
MountingRadial, Through Hole
Quick Jump:
Technical Specifications
Bourns MOV-14D181K technical specifications.
General
| Capacitance | 1.1nF |
| Package/Case | Metal |
| Clamping Current | 50A |
| Clamping Voltage | 300V |
| Current Rating | 50A |
| Diameter | 14mm |
| Energy | 50J |
| Lead Pitch | 7.5mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Surge Current | 4.5kA |
| Max Varistor Voltage | 198V |
| Min Varistor Voltage | 162V |
| Max Voltage Rating (AC) | 115V |
| Max Voltage Rating (DC) | 150V |
| Mount | Radial, Through Hole |
| Number of Circuits | 1 |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 14D |
| Thickness | 3.6mm |
| Tolerance | 10% |
| Varistor Voltage | 180V |
| Voltage Rating (AC) | 115V |
| DC Rated Voltage | 150V |
| Weight | 0.105822oz |
Compliance
| RoHS | Compliant |
Datasheet
Bourns MOV-14D181K Datasheet
Download the complete datasheet for Bourns MOV-14D181K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

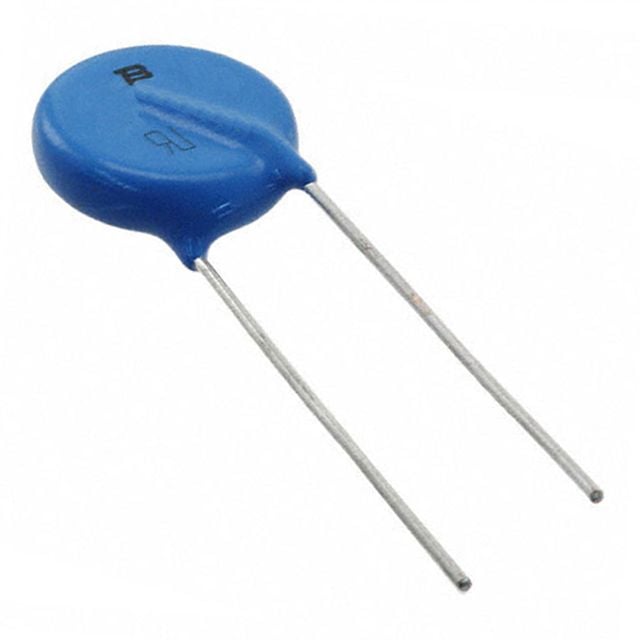

Product Images
