Radial leaded varistor for through-hole mounting, featuring a 14mm diameter and 7.5mm lead pitch. Offers a 430V varistor voltage with a 10% tolerance, and a 350V DC rated voltage. This component handles 50A current rating and 115J energy, with a clamping voltage of 710V and maximum surge current of 4.5kA. Operating temperature range is -40°C to 85°C.
PackageMetal
Capacitance460pF
Current Rating50A
MountingRadial, Through Hole
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Bourns MOV-14D431KTR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Bourns MOV-14D431KTR technical specifications.
General
| Capacitance | 460pF |
| Package/Case | Metal |
| Clamping Current | 50A |
| Clamping Voltage | 710V |
| Current Rating | 50A |
| Diameter | 14mm |
| Energy | 115J |
| Lead Pitch | 7.5mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Surge Current | 4.5kA |
| Max Varistor Voltage | 473V |
| Min Varistor Voltage | 387V |
| Max Voltage Rating (AC) | 275V |
| Max Voltage Rating (DC) | 350V |
| Mount | Radial, Through Hole |
| Number of Circuits | 1 |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Tolerance | 10% |
| Varistor Voltage | 430V |
| Voltage Rating (AC) | 275V |
| DC Rated Voltage | 430V |
| Weight | 0.105822oz |
Compliance
| RoHS | Compliant |
Datasheet
Bourns MOV-14D431KTR Datasheet
Download the complete datasheet for Bourns MOV-14D431KTR to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

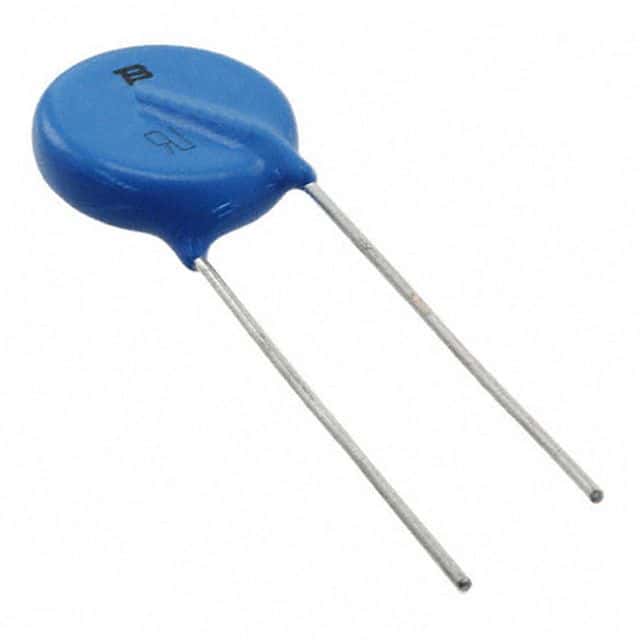

Product Images
