Radial leaded varistor for through-hole mounting, featuring a 14mm diameter and 7.5mm lead pitch. Offers a 470V varistor voltage with a 10% tolerance, and a DC rated voltage of 470V, with an AC rated voltage of 300V. This component provides a clamping voltage of 775V at 50A clamping current, with a maximum surge current capability of 4.5kA and an energy rating of 125 Joules. Operating temperature range spans from -40°C to 85°C.
PackageRadial
Capacitance430pF
Current Rating50A
MountingRadial, Through Hole
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Bourns MOV-14D471KTR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Bourns MOV-14D471KTR technical specifications.
General
| Capacitance | 430pF |
| Package/Case | Radial |
| Clamping Current | 50A |
| Clamping Voltage | 775V |
| Current Rating | 50A |
| Diameter | 14mm |
| Energy | 125J |
| Lead Pitch | 7.5mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Surge Current | 4.5kA |
| Max Varistor Voltage | 517V |
| Min Varistor Voltage | 423V |
| Max Voltage Rating (AC) | 300V |
| Max Voltage Rating (DC) | 385V |
| Mount | Radial, Through Hole |
| Number of Circuits | 1 |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Tolerance | 10% |
| Varistor Voltage | 470V |
| Voltage Rating (AC) | 300V |
| DC Rated Voltage | 470V |
| Weight | 0.105822oz |
Compliance
| RoHS | Compliant |
Datasheet
Bourns MOV-14D471KTR Datasheet
Download the complete datasheet for Bourns MOV-14D471KTR to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

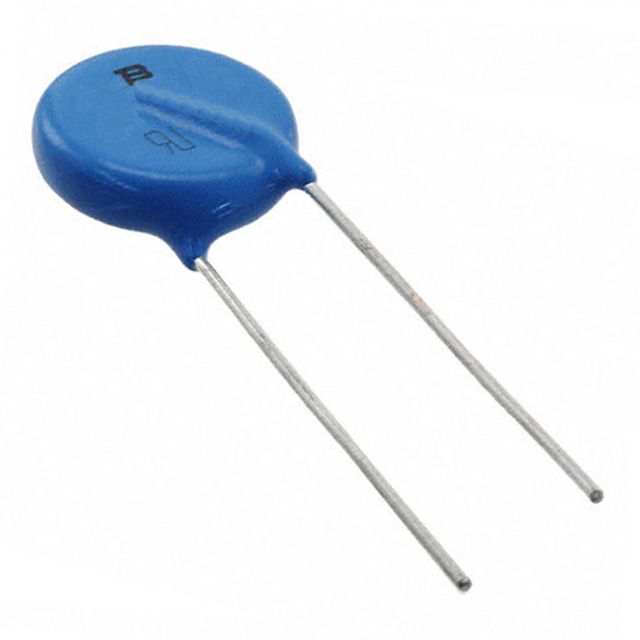

Product Images
