Radial leaded varistor for through-hole mounting, featuring a 14mm diameter and 7.5mm lead pitch. Offers a 560V varistor voltage with a 10% tolerance, and a 460V DC rated voltage. This component handles 50A current rating and clamping current, with a maximum surge current of 4.5kA and 125J energy absorption. Operating temperature range is -40°C to 85°C.
PackageMetal
Capacitance360pF
Current Rating50A
MountingRadial, Through Hole
Quick Jump:
Technical Specifications
Bourns MOV-14D561KTR technical specifications.
General
| Capacitance | 360pF |
| Package/Case | Metal |
| Clamping Current | 50A |
| Clamping Voltage | 925V |
| Current Rating | 50A |
| Diameter | 14mm |
| Energy | 125J |
| Lead Pitch | 7.5mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Surge Current | 4.5kA |
| Max Varistor Voltage | 616V |
| Min Varistor Voltage | 504V |
| Max Voltage Rating (AC) | 350V |
| Max Voltage Rating (DC) | 460V |
| Mount | Radial, Through Hole |
| Number of Circuits | 1 |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Tolerance | 10% |
| Varistor Voltage | 560V |
| Voltage Rating (AC) | 350V |
| DC Rated Voltage | 560V |
| Weight | 0.105822oz |
Compliance
| RoHS | Compliant |
Datasheet
Bourns MOV-14D561KTR Datasheet
Download the complete datasheet for Bourns MOV-14D561KTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

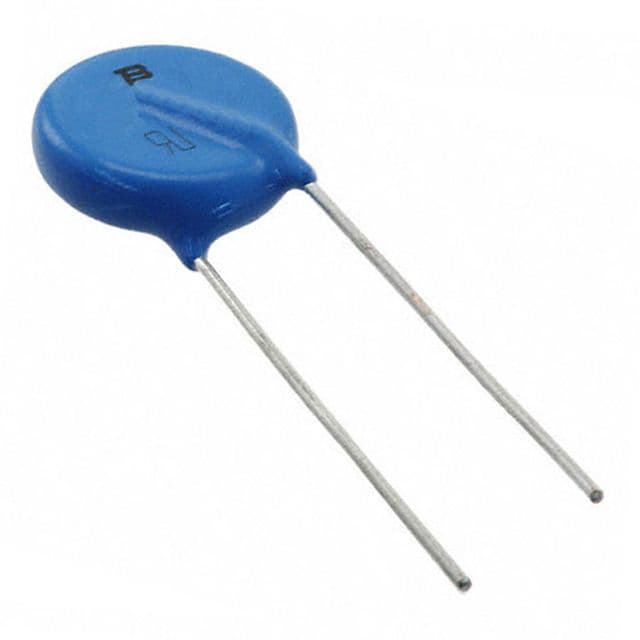

Product Images
