Dual 200µH common mode choke for power and signal lines. Features a 7A current rating and 8mΩ DC resistance (DCR). Operates from -55°C to 125°C with a ferrite core. Surface mountable with SMD/SMT termination, supplied on tape and reel. Unshielded design, RoHS compliant.
Current Rating7A
MountingSurface Mount
Inductance200uH
Quick Jump:
Technical Specifications
Bourns PM3700-10-RC technical specifications.
General
Core Material
Ferrite
Current Rating
7A
DC Current
7A
DC Resistance (DCR)
8mR
Depth
21.9mm
Height
11.43mm
Inductance
200uH
Lead Free
Lead Free
Length
17.78mm
Max Current Rating
7A
Max DC Current
7A
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Lines
2
Package Quantity
200
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PM3700
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
1kHz
Compliance
RoHS
Compliant
Datasheet
Bourns PM3700-10-RC Datasheet
Download the complete datasheet for Bourns PM3700-10-RC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

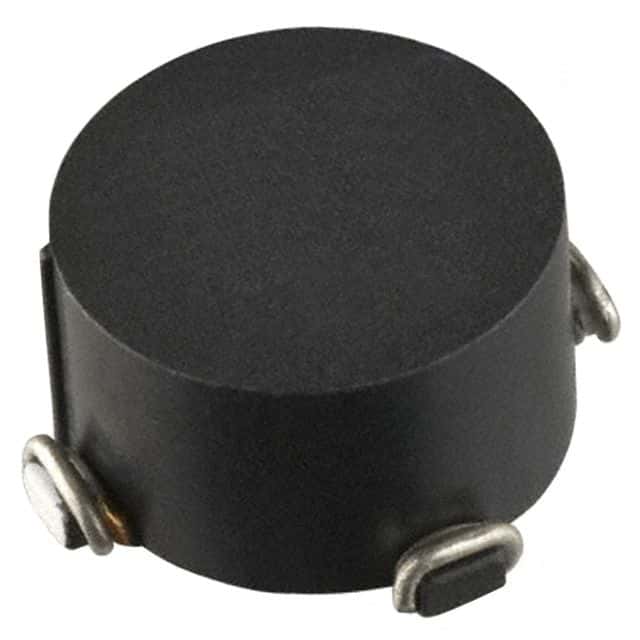

Product Images
