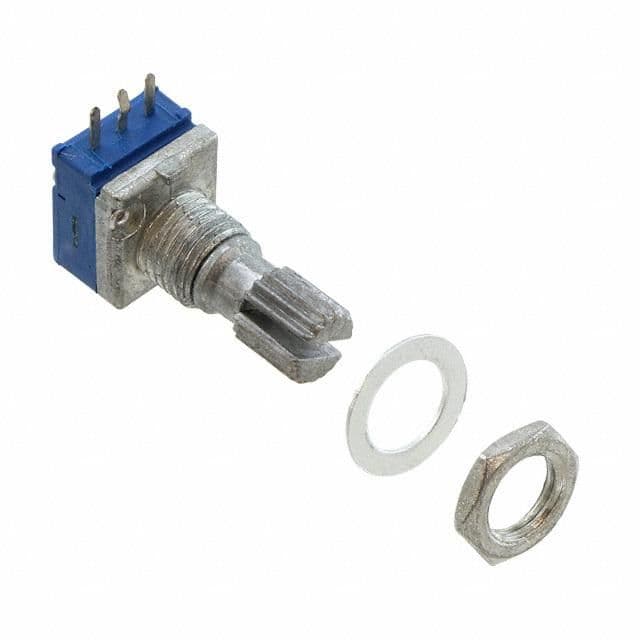

The PTD901-1015K-B103 is a linear carbon film potentiometer with a resistance of 10kR and a tolerance of 10%. It has a maximum power dissipation of 50mW and is suitable for panel mount applications. The potentiometer has a temperature range of -10°C to 50°C and is compliant with RoHS regulations. It is available in bulk packaging with 162 pieces per package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bourns PTD901-1015K-B103 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Depth | 9.5mm |
| Length | 22.05mm |
| Max Operating Temperature | 50°C |
| Military Standard | Not |
| Min Operating Temperature | -10°C |
| Max Power Dissipation | 50mW |
| Mount | Panel, Through Hole |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Package Quantity | 162 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 10kR |
| Resistance Tolerance | 10% |
| Resistor Type | Carbon |
| RoHS Compliant | Yes |
| Series | Pro Audio PTD90 |
| Taper | Linear |
| Technology | CARBON FILM |
| Termination | Pin |
| Tolerance | 10% |
| Type | Potentiometer |
| RoHS | Compliant |
