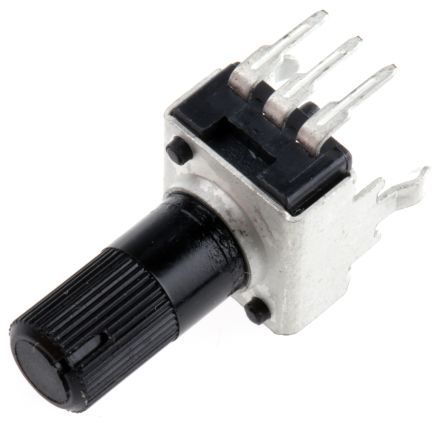

Linear carbon cermet potentiometer with 100 kOhms resistance and 20% tolerance. Features a knurled shaft, 1 gang, 1 turn, and pin termination. Operates within -10°C to 50°C with a maximum power dissipation of 50mW and a DC rated voltage of 50V. Mounts via through hole with snap-in brackets.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bourns PTV09A-4020U-B104 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Diameter | 0.236inch |
| Actuator Length | 0.787inch |
| Depth | 12mm |
| Length | 9.8mm |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | -10°C |
| Max Power Dissipation | 50mW |
| Military Standard | Not |
| Mount | Through Hole, Snap in, Brackets |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Package Quantity | 100 |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 100kR |
| Resistance Tolerance | 20% |
| Resistor Type | Carbon |
| RoHS Compliant | Yes |
| Series | Pro Audio PTV09 |
| Taper | Linear |
| Technology | CARBON FILM |
| Termination | Pin |
| Tolerance | 20% |
| Type | Potentiometer |
| DC Rated Voltage | 50V |
| RoHS | Compliant |
