Linear rotary potentiometer with a carbon element, offering 10 kOhm resistance and a 20% tolerance. This single-turn potentiometer features a maximum power dissipation of 50mW and operates within a temperature range of -10°C to 50°C. Designed for through-hole mounting with a snap-in, horizontal configuration and brackets, it utilizes PCB termination. The actuator has a diameter of 0.236 inches and a length of 0.984 inches, with overall dimensions of 12.5mm height and depth, and 11.4mm length.
Resistance10kR
MountingThrough Hole, Snap in, Horizontal, Brackets
Quick Jump:
Technical Specifications
Bourns PTV09A-4225F-B103 technical specifications.
General
| Actuator Diameter | 0.236inch |
| Actuator Length | 0.984inch |
| Depth | 12.5mm |
| Height | 12.5mm |
| Length | 11.4mm |
| Max Operating Temperature | 50°C |
| Max Power Dissipation | 50mW |
| Military Standard | Not |
| Min Operating Temperature | -10°C |
| Mount | Through Hole, Snap in, Horizontal, Brackets |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 10kR |
| Resistance Tolerance | 20% |
| Resistor Type | Carbon |
| RoHS Compliant | Yes |
| Series | Pro Audio PTV09 |
| Taper | Linear |
| Technology | CARBON FILM |
| Termination | PCB |
| Tolerance | 20% |
| Type | Potentiometer |
Compliance
| RoHS | Compliant |
Datasheet
Bourns PTV09A-4225F-B103 Datasheet
Download the complete datasheet for Bourns PTV09A-4225F-B103 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

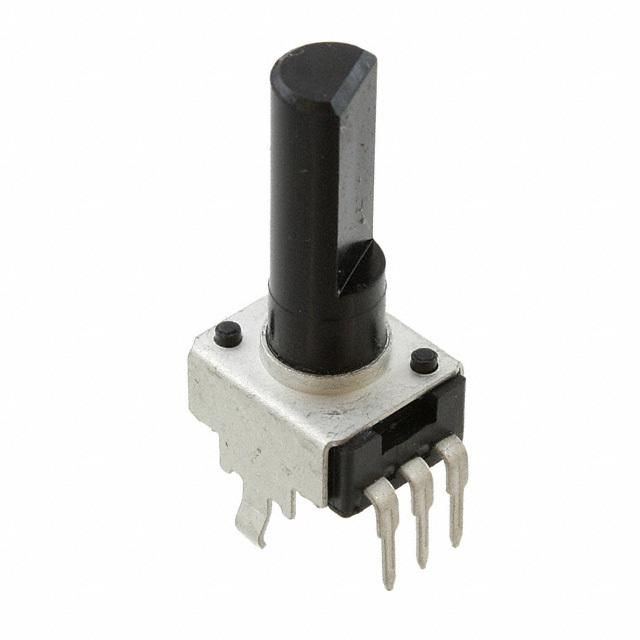

Product Images
