Through-hole thick film resistor with 7.5 Ohm resistance and 1% tolerance, rated for 20W maximum power dissipation and 250V voltage. Features a TO-220 package with radial terminations and a 5.08mm terminal pitch. Operating temperature range is -55°C to 155°C, with automotive AEC-Q200 qualification.
PackageTO-220
Resistance7.5R
Voltage Rating250V
MountingThrough Hole
Quick Jump:
Technical Specifications
Bourns PWR220T-20-7R50F technical specifications.
General
Package/Case
TO-220
Depth
4mm
Features
Automotive AEC-Q200
Height
14.6mm
Lead Diameter
0.72mm
Lead Pitch
5.08mm
Length
10.1mm
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Max Power Dissipation
20W
Mount
Through Hole
Number of Terminations
2
Package Quantity
50
Packaging
Rail/Tube
Reach SVHC Compliant
No
Resistance
7.5R
Resistance Tolerance
1%
Resistor Type
Thick Film
RoHS Compliant
Yes
Series
PWR220T-20
Technology
THICK FILM
Terminal Pitch
5.08mm
Termination
Radial
Threshold Voltage
12.2V
Tolerance
1%
Voltage Rating
250V
DC Rated Voltage
250V
Weight
0.061729oz
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Bourns PWR220T-20-7R50F Datasheet
Download the complete datasheet for Bourns PWR220T-20-7R50F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

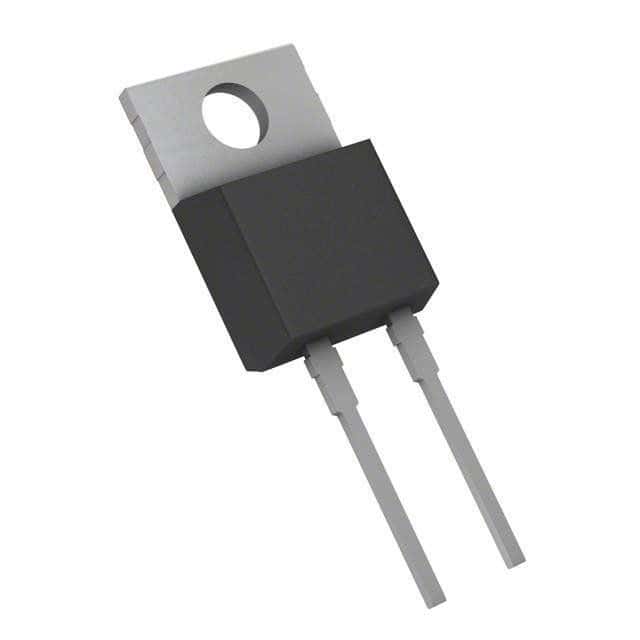

Product Images
