35W thick film fixed resistor with 20 ohm resistance and 1% tolerance. Features a 250V voltage rating and operates within a -55°C to 155°C temperature range. Designed for surface mount (SMD/SMT) applications with a TO-263-3 package. Automotive AEC-Q200 qualified.
PackageTO-263-3
Resistance20R
Voltage Rating250V
Quick Jump:
Technical Specifications
Bourns PWR263S-35-20R0F technical specifications.
General
| Package/Case | TO-263-3 |
| Depth | 4.5mm |
| Features | Automotive AEC-Q200 |
| Height | 10.4mm |
| Length | 10.1mm |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 35W |
| Number of Terminations | 2 |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 20R |
| Resistance Tolerance | 1% |
| Resistor Type | Thick Film |
| Series | PWR263S-35 |
| Technology | THICK FILM |
| Termination | SMD/SMT |
| Tolerance | 1% |
| Voltage Rating | 250V |
| DC Rated Voltage | 250V |
| Width | 4.5mm |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Bourns PWR263S-35-20R0F Datasheet
Download the complete datasheet for Bourns PWR263S-35-20R0F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

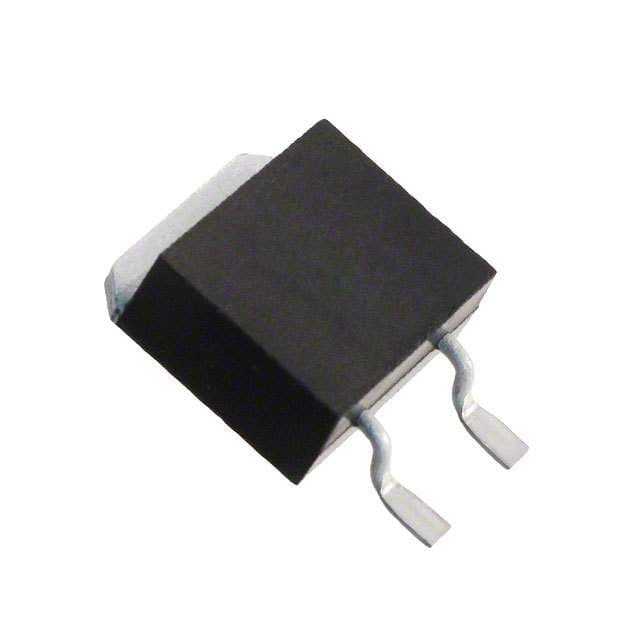

Product Images
