Through-hole radial fixed resistor with 10mΩ resistance and 1% tolerance. Features 5W maximum power dissipation, 270°C maximum operating temperature, and a metal film technology. Designed with a 20.32mm lead pitch and tin contact plating, this component offers moisture resistance and is RoHS compliant.
PackageRadial
Resistance10mR
MountingThrough Hole
Inductance10nH
Quick Jump:
Technical Specifications
Bourns PWR4412-2SDR0100F technical specifications.
General
| Package/Case | Radial |
| Contact Plating | Tin |
| Depth | 4.8mm |
| Features | Moisture Resistant |
| Height | 25.4mm |
| Inductance | 10nH |
| Lead Free | Lead Free |
| Lead Pitch | 20.32mm |
| Length | 21.33mm |
| Max Operating Temperature | 270°C |
| Max Power Dissipation | 5W |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Terminations | 2 |
| Package Quantity | 250 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Resistance | 10mR |
| Resistance Tolerance | 1% |
| RoHS Compliant | Yes |
| Series | PWR4412-2S |
| Technology | METAL FILM |
| Terminal Pitch | 20.32mm |
| Termination | Radial |
| Threshold Voltage | 200mV |
| Tolerance | 1% |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Bourns PWR4412-2SDR0100F Datasheet
Download the complete datasheet for Bourns PWR4412-2SDR0100F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

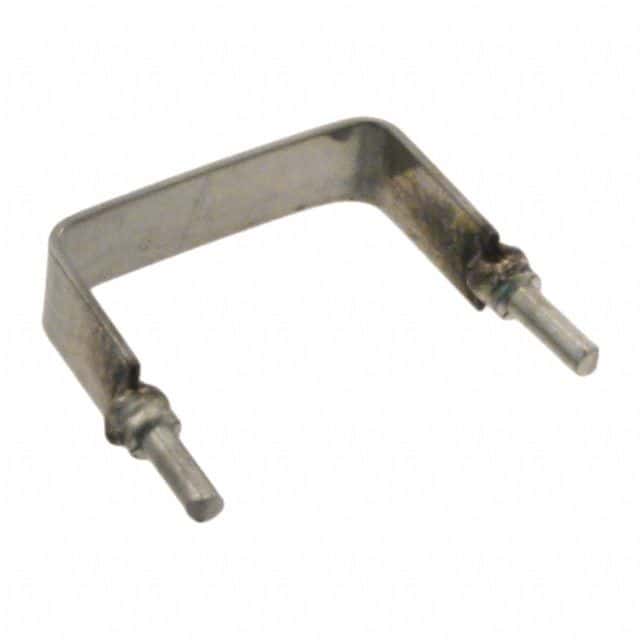

Product Images
