Through-hole radial fixed inductor featuring 3.3µH inductance with a 20% tolerance, designed for power applications. This ferrite core component offers a 3.6A current rating and a low 18mΩ DC resistance. Operating across a -40°C to 105°C temperature range, it provides a Q factor of 30 at 1kHz and a self-resonant frequency of 50MHz. The radial package has a 5mm lead pitch and 8.7mm diameter.
PackageRadial
Resistance18MR
Current Rating3.6A
MountingThrough Hole, Radial
Quick Jump:
Technical Specifications
Bourns RLB0912-3R3ML technical specifications.
General
| Package/Case | Radial |
| Core Material | Ferrite |
| Current Rating | 3.6A |
| DC Current | 3.6A |
| DC Resistance (DCR) | 18mR |
| Diameter | 8.7mm |
| Height | 11mm |
| Height - Seated (Max) | 0.433inch |
| Inductance | 3.3uH |
| Inductance Tolerance | 20% |
| Lead Diameter | 0.65mm |
| Lead Pitch | 5mm |
| Lead/Base Style | Radial |
| Length | 10mm |
| Max DC Current | 3.6A |
| Max Operating Temperature | 105°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, Radial |
| Package Quantity | 200 |
| Packaging | Bulk |
| Q Factor | 30 |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 18MR |
| RMS Current (Irms) | 3.6A |
| RoHS Compliant | Yes |
| Sample Rate (Hz) | 1kHz |
| Self Resonant Frequency | 50MHz |
| Series | RLB |
| Shielding | Unshielded |
| Termination | Radial |
| Test Frequency | 1kHz |
| Tolerance | 20% |
Compliance
| RoHS | Compliant |
Datasheet
Bourns RLB0912-3R3ML Datasheet
Download the complete datasheet for Bourns RLB0912-3R3ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

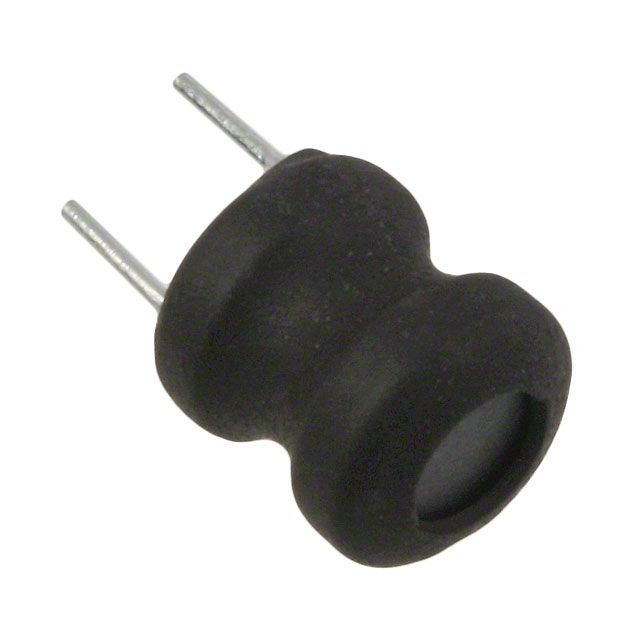

Product Images
