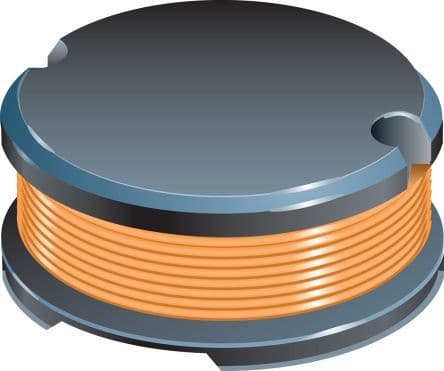

Surface mount fixed inductor with 6.8µH inductance and 20% tolerance. Features a ferrite core, 1.41A current rating, and 120mΩ DC resistance. Operates from -40°C to 125°C with a Q factor of 28 at 1kHz. Packaged in tape and reel, this unshielded wirewound component is RoHS compliant.
PackageNonstandard
Resistance120MR
Current Rating1.41A
MountingSurface Mount
Quick Jump:
Technical Specifications
Bourns SDR0403-6R8ML technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current Rating | 1.41A |
| DC Resistance (DCR) | 120mR |
| Depth | 4.3mm |
| Diameter | 4.5mm |
| Height | 3.2mm |
| Height - Seated (Max) | 0.126inch |
| Inductance | 6.8uH |
| Inductance Tolerance | 20% |
| Length | 0.177inch |
| Max DC Current | 1.41A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Q Factor | 28 |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 120MR |
| RMS Current (Irms) | 1.41A |
| RoHS Compliant | Yes |
| Sample Rate (Hz) | 1kHz |
| Saturation Current | 2.1A |
| Self Resonant Frequency | 40MHz |
| Series | SDR0403 |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 1kHz |
| Tolerance | 20% |
| Width | 0.157inch |
Compliance
| RoHS | Compliant |
