General purpose, surface mount inductor featuring 470µH inductance with a 10% tolerance. This ferrite-core component offers a 210mA current rating and a DC resistance of 3.3 Ohms. Operating across a -40°C to 125°C temperature range, it is supplied in a 0604 package and is RoHS compliant.
Package0604
Resistance3.3R
Current Rating210mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Bourns SDR0604-471KL technical specifications.
General
| Package/Case | 0604 |
| Core Material | Ferrite |
| Current Rating | 210mA |
| DC Resistance (DCR) | 3.3R |
| Diameter | 5.8mm |
| Height | 4.8mm |
| Inductance | 470uH |
| Inductance Tolerance | 10% |
| Length | 0.228inch |
| Max DC Current | 210mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Q Factor | 25 |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 3.3R |
| RMS Current (Irms) | 210mA |
| RoHS Compliant | Yes |
| Sample Rate (Hz) | 1kHz |
| Saturation Current | 300mA |
| Self Resonant Frequency | 3MHz |
| Series | SDR0604 |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 1kHz |
| Tolerance | 10% |
| Width | 0.228inch |
Compliance
| RoHS | Compliant |
Datasheet
Bourns SDR0604-471KL Datasheet
Download the complete datasheet for Bourns SDR0604-471KL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

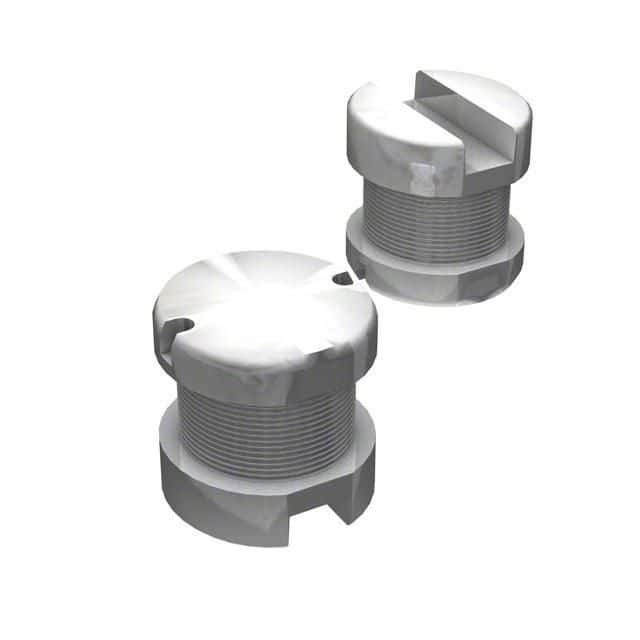

Product Images
