Surface mount fixed inductor featuring 820µH inductance with a 10% tolerance, tested at 1kHz. This unshielded, wirewound ferrite core component offers a 140mA current rating and 5.2Ω DC resistance. Designed for automotive applications, it operates within a -40°C to 125°C temperature range and has a Q factor of 25. The component is supplied in tape and reel packaging.
PackageNonstandard
Current Rating140mA
MountingSurface Mount
Inductance820uH
Quick Jump:
Technical Specifications
Bourns SDR0604-821KL technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current Rating | 140mA |
| DC Resistance (DCR) | 5.2R |
| Depth | 5.8mm |
| Diameter | 5.8mm |
| Height | 4.8mm |
| Inductance | 820uH |
| Inductance Tolerance | 10% |
| Length | 0.228inch |
| Max DC Current | 140mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 400 |
| Packaging | Tape and Reel |
| Q Factor | 25 |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 140mA |
| RoHS Compliant | Yes |
| Saturation Current | 200mA |
| Self Resonant Frequency | 2MHz |
| Series | SDR0604 |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 1kHz |
| Tolerance | 10% |
| Width | 0.228inch |
Compliance
| RoHS | Compliant |
Datasheet
Bourns SDR0604-821KL Datasheet
Download the complete datasheet for Bourns SDR0604-821KL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

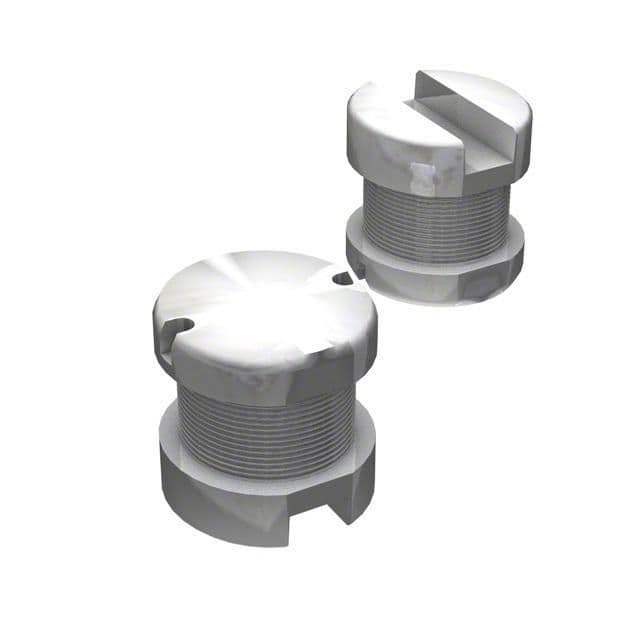

Product Images
