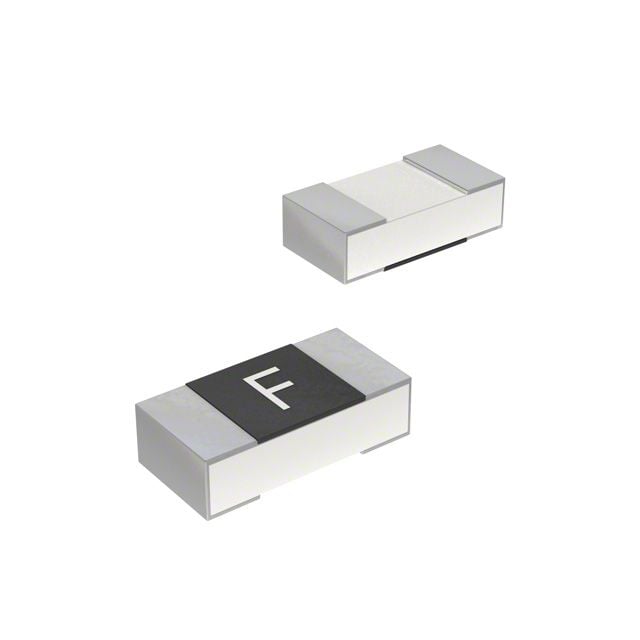

Surface mount electric fuse, slow blow, featuring a 500mA current rating and 50VDC rated voltage. This component offers a 50A interrupting rating and a DC cold resistance of 175mR. Constructed with a ceramic body, it measures 1.6mm in length, 0.8mm in width, and 0.45mm in height, fitting the 0603 case code. Operating temperature range is -20°C to 105°C, and it is HALOGEN FREE and RoHS COMPLIANT.
Package0603
Current500mA
Resistance175mR
Current Rating500mA
Quick Jump:
Technical Specifications
Bourns SF-0603S050-2 technical specifications.
General
| Body Material | Ceramic |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Current | 500mA |
| Current Rating | 500mA |
| DC Cold Resistance | 175mR |
| Depth | 0.8mm |
| Fuse Current | 500mA |
| Height | 0.45mm |
| Length | 1.6mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -20°C |
| Mount | Surface Mount |
| Package Quantity | 10000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Resistance | 175mR |
| RoHS Compliant | Yes |
| Series | SF-0603S |
| Termination | SMD/SMT |
| DC Rated Voltage | 50V |
| Width | 0.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Bourns SF-0603S050-2 Datasheet
Download the complete datasheet for Bourns SF-0603S050-2 to view detailed technical specifications.
