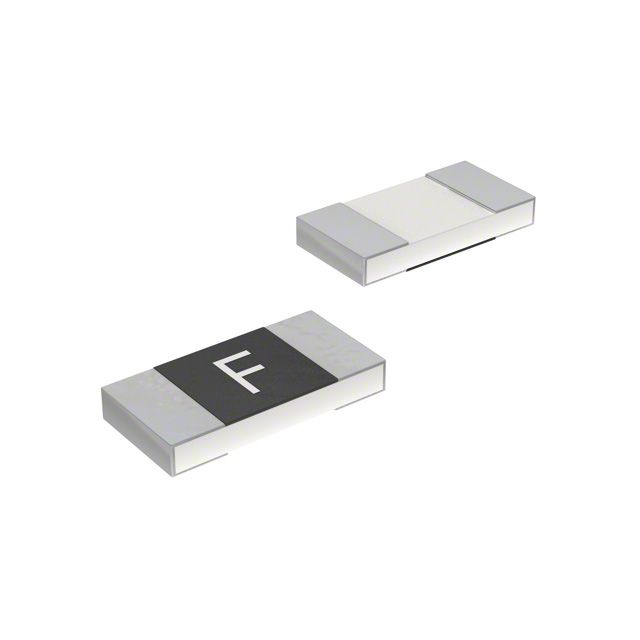

Surface mount chip fuse with a 4A current rating and 24VDC voltage rating. Features a slow-blow characteristic, 14mΩ DC cold resistance, and a 50A interrupt rating. Housed in a 1206 (3216 metric) ceramic case with copper terminals, measuring 3.1mm x 1.55mm x 0.6mm. Operates within a temperature range of -20°C to 105°C. HALOGEN FREE and RoHS COMPLIANT.
Package1206
Resistance14mR
Voltage Rating24V
Current Rating4A
Quick Jump:
Technical Specifications
Bourns SF-1206S400-2 technical specifications.
General
Approvals
UL
Body Material
Ceramic
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Current Rating
4A
DC Cold Resistance
14mR
Depth
1.55mm
Fuse Current
4A
Fuse Size
3.1 X 1.55 X 0.6mm
Height
0.6mm
Length
3.1mm
Max Operating Temperature
105°C
Min Operating Temperature
-20°C
Max Voltage Rating (DC)
24V
Mount
Surface Mount
Package Quantity
5000
Packaging
Tape and Reel
Primary Type
Chip
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
14mR
RoHS Compliant
Yes
Series
SF-1206S
Terminal Material
Copper
Termination
SMD/SMT
Voltage Rating
24V
DC Rated Voltage
24V
Width
1.55mm
Compliance
RoHS
Compliant
Datasheet
Bourns SF-1206S400-2 Datasheet
Download the complete datasheet for Bourns SF-1206S400-2 to view detailed technical specifications.
