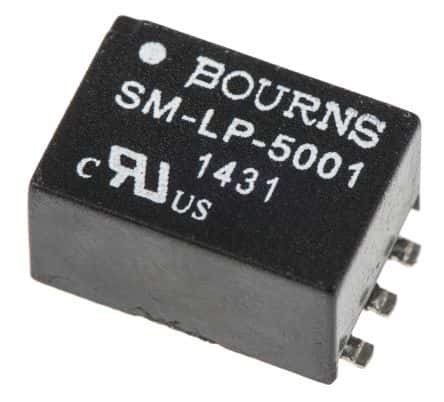

1:1 audio transformer for surface mount applications. Features a 600 Ohm primary and secondary impedance, 3.8H primary inductance, and 1.5kV isolation voltage. Operates within a 200Hz to 4kHz frequency range with a maximum insertion loss of 2dB and a return loss of 24dB. DCR is 115 Ohms for both primary and secondary. Dimensions are 9.6mm (L) x 7.36mm (W) x 14mm (D) with gull wing leads.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bourns SM-LP-5001 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Bourns SM-LP-5001 technical specifications.
| DC Resistance (DCR) | 115R |
| Depth | 14mm |
| Height | 9.6mm |
| Inductance | 3.8H |
| Insertion Loss | 2dB |
| Isolation Voltage | 1.5kV |
| Lead/Base Style | Gull Wing |
| Length | 9.6mm |
| Max Frequency | 4kHz |
| Min Frequency | 200Hz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Mount | Surface Mount |
| Operating Frequency | 0.2 to 4 kHz |
| Package Quantity | 53 |
| Packaging | Rail/Tube |
| Primary Impedance | 600R |
| Primary Inductance | 3.8H |
| Reach SVHC Compliant | Unknown |
| Return Loss | 24dB |
| RoHS Compliant | Yes |
| Secondary Impedance | 600R |
| Series | SM-LP-5001 |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Turns Ratio | 1:1 |
| Width | 7.36mm |
| RoHS | Compliant |
