Unidirectional Transient Voltage Suppressor (TVS) diode, 400W peak pulse power, with a 22V reverse standoff voltage and a minimum breakdown voltage of 24.4V. Designed for surface mount applications in a DO-214AC package, this silicon component offers a maximum surge current of 40A and a peak pulse current of 11.2A. Operating across a temperature range of -55°C to 150°C, it features a low maximum reverse leakage current of 5µA. This RoHS compliant device is supplied on tape and reel.
PackageDO-214AC
MountingSurface Mount
PolarityUnidirectional
Quick Jump:
Technical Specifications
Bourns SMAJ22A technical specifications.
General
| Package/Case | DO-214AC |
| Diode Type | ZENER |
| Direction | Unidirectional |
| Min Breakdown Voltage | 24.4V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Reverse Leakage Current | 5uA |
| Max Surge Current | 40A |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 3.5V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 11.2A |
| Peak Pulse Power | 400W |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Radiation Hardening | No |
| Reverse Standoff Voltage | 22V |
| RoHS Compliant | Yes |
| Series | SMAJ |
| Termination | SMD/SMT |
Compliance
| RoHS | Compliant |
Datasheet
Bourns SMAJ22A Datasheet
Download the complete datasheet for Bourns SMAJ22A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

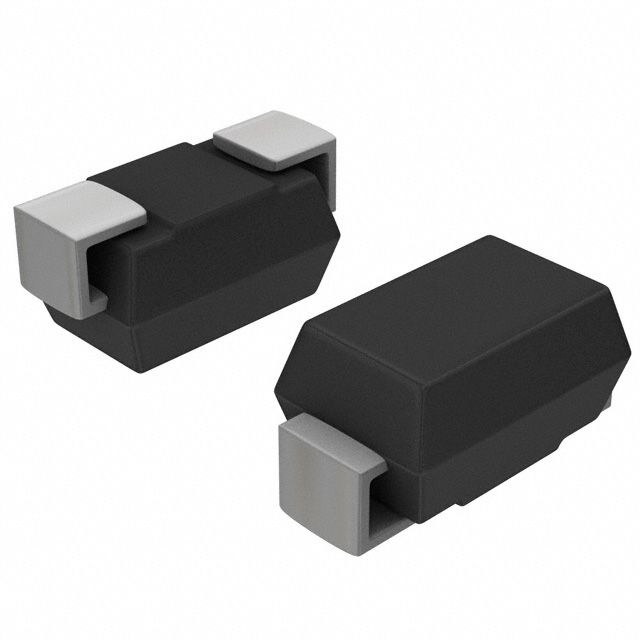

Product Images
