Bidirectional Transient Voltage Suppressor (TVS) diode in a DO-214AA SMB package for surface mounting. Features a 12V reverse standoff voltage, 13.3V minimum breakdown voltage, and 14.7V maximum breakdown voltage. Offers a 19.9V clamping voltage and 600W peak pulse power dissipation with a 100A maximum surge current capability. Operates across a wide temperature range of -55°C to 150°C with a low leakage current of 5uA.
PackageDO-214AA
MountingSurface Mount
PolarityBidirectional
Quick Jump:
Technical Specifications
Bourns SMBJ12CA technical specifications.
General
| Package/Case | DO-214AA |
| Clamping Voltage | 19.9V |
| Diode Type | ZENER |
| Direction | Bidirectional |
| Leakage Current | 5uA |
| Max Breakdown Voltage | 14.7V |
| Min Breakdown Voltage | 13.3V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 600W |
| Max Reverse Leakage Current | 5uA |
| Max Surge Current | 100A |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 1 |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Operating Supply Voltage | 3.5V |
| Packaging | Cut Tape |
| Peak Pulse Current | 30.2A |
| Peak Pulse Power | 600W |
| Polarity | Bidirectional |
| Power Line Protection | No |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 13.3V |
| Reverse Standoff Voltage | 12V |
| RoHS Compliant | Yes |
| Series | SMBJ |
| Termination | SMD/SMT |
Compliance
| RoHS | Compliant |
Datasheet
Bourns SMBJ12CA Datasheet
Download the complete datasheet for Bourns SMBJ12CA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

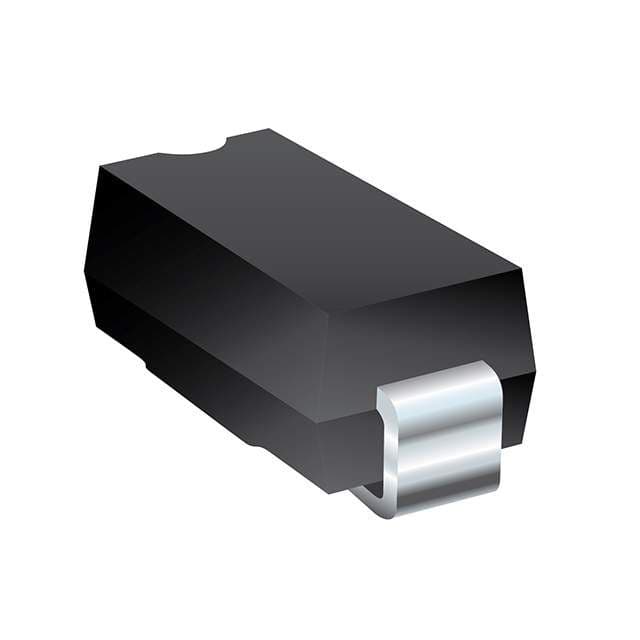

Product Images
