Unidirectional TVS Diode for surge suppression, featuring a 12V reverse standoff voltage and a 1.5kW peak pulse power rating. This component offers a 5W maximum power dissipation and a 200A maximum surge current capability. Designed for surface mounting in a DO-214AB package, it operates across a temperature range of -55°C to 150°C. Key electrical characteristics include a 15.3V maximum breakdown voltage and a 5uA maximum reverse leakage current.
PackageDO-214AB
MountingSurface Mount
PolarityUnidirectional
Quick Jump:
Technical Specifications
Bourns SMCJ12A technical specifications.
General
| Package/Case | DO-214AB |
| Diode Type | ZENER |
| Direction | Unidirectional |
| Max Breakdown Voltage | 15.3V |
| Min Breakdown Voltage | 13.3V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 5W |
| Max Reverse Leakage Current | 5uA |
| Max Surge Current | 200A |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 3.5V |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Peak Pulse Current | 75.4A |
| Peak Pulse Power | 1.5kW |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Standoff Voltage | 12V |
| RoHS Compliant | Yes |
| Series | SMCJ |
| Termination | SMD/SMT |
Compliance
| RoHS | Compliant |
Datasheet
Bourns SMCJ12A Datasheet
Download the complete datasheet for Bourns SMCJ12A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

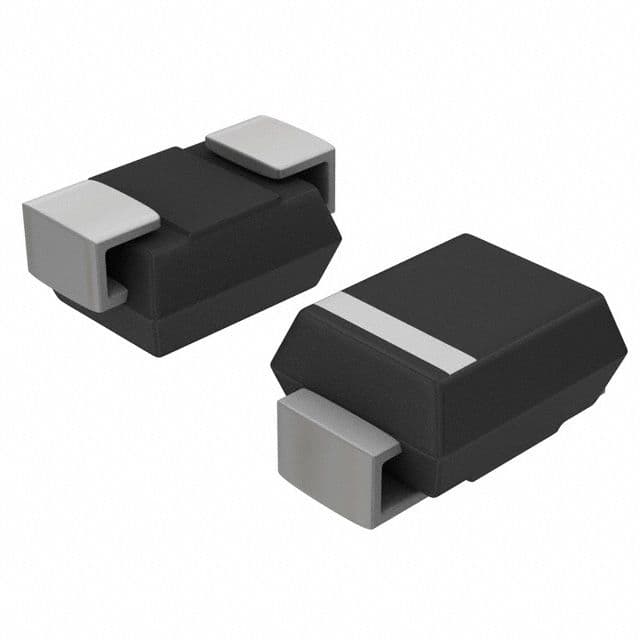

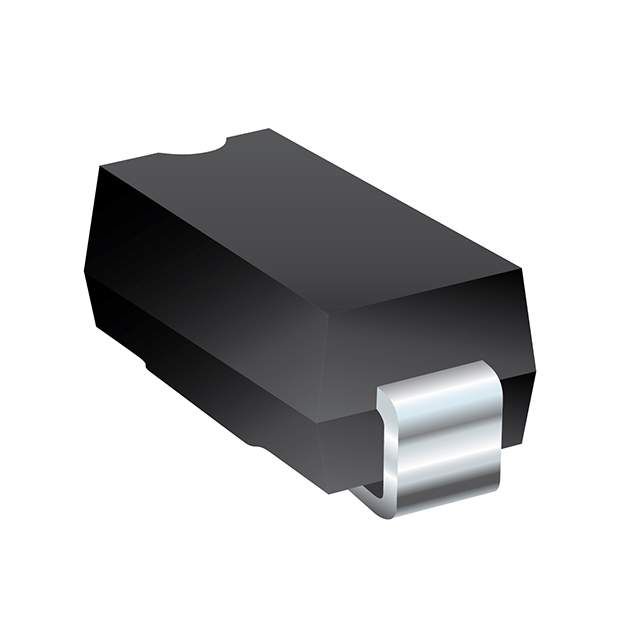

Product Images
