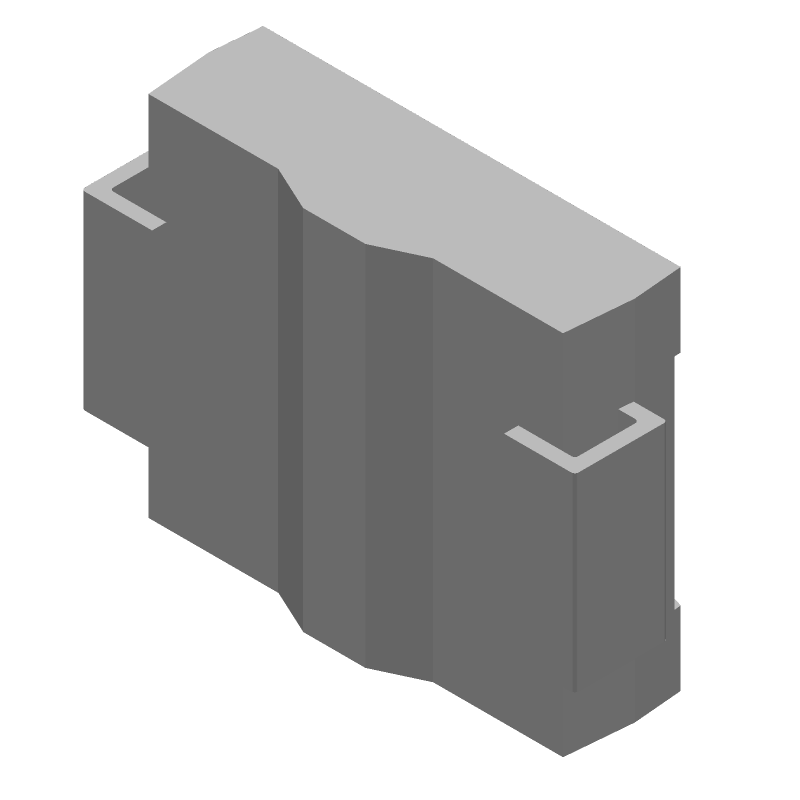

Unidirectional Transient Voltage Suppressor (TVS) diode designed for surface mount applications. Features a 3kW peak pulse power rating and 28V reverse standoff voltage. Offers a breakdown voltage range of 31.1V to 34.4V with a maximum surge current capability of 300A. Operates across a wide temperature range from -55°C to 150°C. Packaged in a DO-214AB (SMC) plastic case, this RoHS compliant component is suitable for demanding protection circuits.
PackageDO-214AB
MountingSurface Mount
PolarityUnidirectional
Quick Jump:
Technical Specifications
Bourns SMLJ28A technical specifications.
General
Package/Case
DO-214AB
Diode Type
ZENER
Direction
Unidirectional
Max Breakdown Voltage
34.4V
Min Breakdown Voltage
31.1V
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
3kW
Max Reverse Leakage Current
5uA
Max Surge Current
300A
Mount
Surface Mount
Number of Channels
1
Number of Unidirectional Channels
1
Operating Supply Voltage
3.5V
Package Quantity
1
Packaging
Tape and Reel
Peak Pulse Current
66A
Peak Pulse Power
3kW
Polarity
Unidirectional
Power Line Protection
No
Reach SVHC Compliant
No
Reverse Standoff Voltage
28V
RoHS Compliant
Yes
Series
SMLJ
Termination
SMD/SMT
Compliance
RoHS
Compliant
