Unidirectional Transient Voltage Suppressor (TVS) diode designed for surface mount applications. Features a 3kW peak pulse power rating and a 33V reverse standoff voltage. Offers a minimum breakdown voltage of 36.7V and a maximum surge current of 300A. Operates across a temperature range of -55°C to 150°C with a maximum reverse leakage current of 5µA. Packaged in a DO-214AB (SMC) plastic case, this RoHS compliant component is supplied on tape and reel.
PackageDO-214AB
MountingSurface Mount
PolarityUnidirectional
Quick Jump:
Technical Specifications
Bourns SMLJ33A technical specifications.
General
Package/Case
DO-214AB
Diode Type
ZENER
Direction
Unidirectional
Lead Free
Lead Free
Min Breakdown Voltage
36.7V
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Reverse Leakage Current
5uA
Max Surge Current
300A
Mount
Surface Mount
Number of Channels
1
Number of Unidirectional Channels
1
Operating Supply Voltage
3.5V
Package Quantity
1
Packaging
Tape and Reel
Peak Pulse Current
56.2A
Peak Pulse Power
3kW
Polarity
Unidirectional
Power Line Protection
No
Reverse Standoff Voltage
33V
RoHS Compliant
Yes
Series
SMLJ
Termination
SMD/SMT
Compliance
RoHS
Compliant
Datasheet
Bourns SMLJ33A Datasheet
Download the complete datasheet for Bourns SMLJ33A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

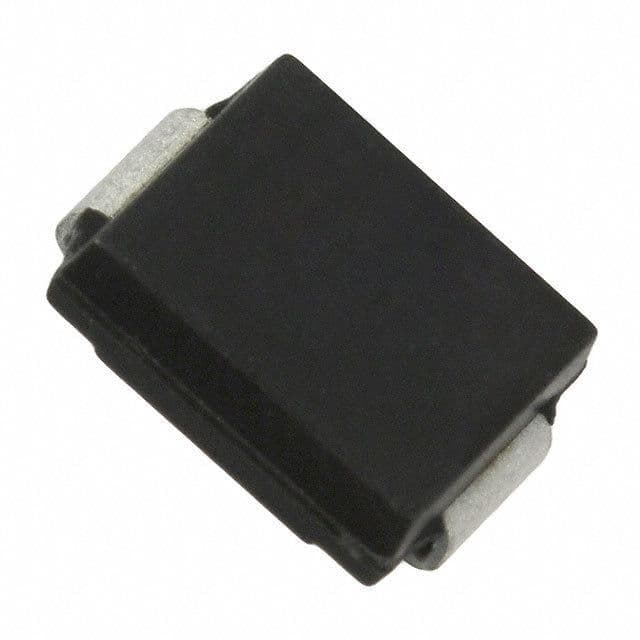

Product Images
