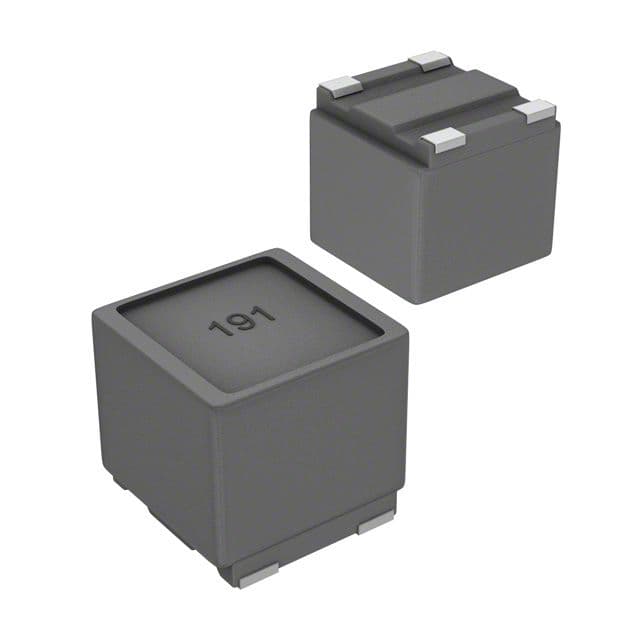

Surface mount data line filter featuring 2 functions, 2A current rating, and 50V voltage rating. Offers 350 Ohm impedance at 100kHz with 1.1uH inductance and a 1.2GHz self-resonant frequency. Encased in a 0504 package with ferrite core material, it operates from -40°C to 125°C and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bourns SRF0504-351Y datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | 0504 |
| Core Material | Ferrite |
| Current Rating | 2A |
| DC Current | 2A |
| DC Resistance (DCR) | 40mR |
| Depth | 5.2mm |
| Frequency | 1.2GHz |
| Height | 4.8mm |
| Impedance | 350R |
| Inductance | 1.1uH |
| Length | 5mm |
| Max Current Rating | 2A |
| Max DC Current | 2A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Lines | 2 |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sample Rate (Hz) | 100MHz |
| Self Resonant Frequency | 1.2GHz |
| Series | SRF0504 |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 30% |
| Voltage Rating (AC) | 50V |
| DC Rated Voltage | 50V |
| Width | 5.2mm |
| RoHS | Compliant |
