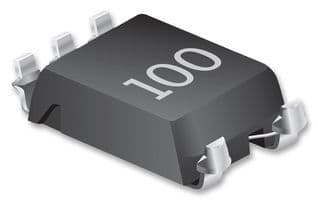

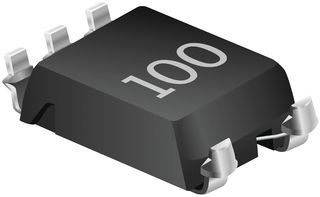

Surface mount data line filter featuring 2 functions, 50V DC rating, and 300mA current handling. This shielded component utilizes a ferrite core, offering 10µH inductance and 600Ω impedance at 10kHz. Operating across a -40°C to 105°C temperature range, it boasts a self-resonant frequency of 570MHz and is RoHS compliant. Packaged in a 0602 case, it is supplied on tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bourns SRF0602-100Y datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Bourns SRF0602-100Y technical specifications.
| Package/Case | 0602 |
| Core Material | Ferrite |
| Current Rating | 300mA |
| Depth | 3.6mm |
| Height | 1.65mm |
| Impedance | 600R |
| Inductance | 10uH |
| Length | 6.5mm |
| Max Current Rating | 300mA |
| Max DC Current | 300mA |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Lines | 2 |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 570MHz |
| Series | SRF0602 |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 10kHz |
| Tolerance | 50% |
| DC Rated Voltage | 50V |
| Width | 3.6mm |
| RoHS | Compliant |
