Surface mount shielded wirewound power inductor with 330µH inductance and 20% tolerance. Features a ferrite core, 420mA RMS current rating, and a self-resonant frequency of 100kHz. DC resistance is 2.16Ω (parallel) and 8.25Ω (series). Operating temperature range is -40°C to 125°C. Packaged in tape and reel.
PackageNonstandard
MountingSurface Mount
Inductance330uH
Quick Jump:
Technical Specifications
Bourns SRF0703-331M technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
DC Resistance (DCR) - Parallel
2.16R
DC Resistance (DCR) - Series
8.25R
Depth
7.6mm
Height
3.4mm
Inductance
330uH
Inductance - Parallel
330uH
Inductance - Series
1.32mH
Inductance Tolerance
20%
Length
7.6mm
Max DC Current
420mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Coils
2
Package Quantity
1500
Packaging
Tape and Reel
Reach SVHC Compliant
No
RMS Current (Irms)
420mA
RoHS Compliant
Yes
Self Resonant Frequency
100kHz
Series
SRF0703
Shielding
Shielded
Termination
SMD/SMT
Tolerance
20%
Width
7.6mm
Compliance
RoHS
Compliant
Datasheet
Bourns SRF0703-331M Datasheet
Download the complete datasheet for Bourns SRF0703-331M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

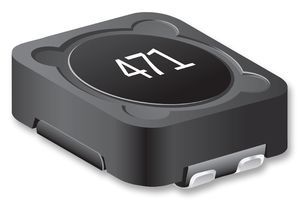

Product Images
