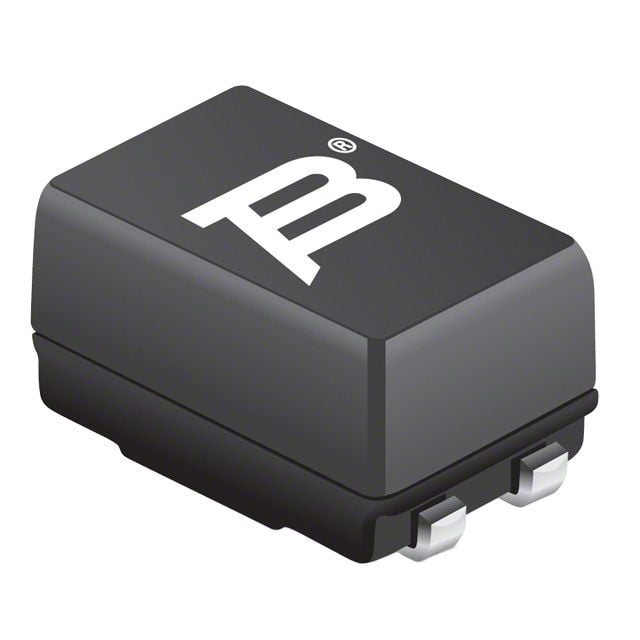

Dual 25µH common mode choke for power and signal lines, featuring a 600Ω impedance at 1kHz and a 1A current rating. This surface mount component utilizes a ferrite core and offers a low 0.16Ω DC resistance. Operating across a wide temperature range of -40°C to 105°C, it is housed in a 0905 package and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bourns SRF0905-250Y datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | 0905 |
| Core Material | Ferrite |
| Current Rating | 1A |
| DC Current | 1A |
| DC Resistance (DCR) | 160mR |
| Depth | 6.3mm |
| Frequency | 150MHz |
| Height | 5mm |
| Impedance | 600R |
| Inductance | 25uH |
| Length | 9.2mm |
| Material | Polymer |
| Max Current Rating | 1A |
| Max DC Current | 1A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Lines | 2 |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sample Rate (Hz) | 1kHz |
| Self Resonant Frequency | 20MHz |
| Series | SRF0905 |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 1kHz |
| Tolerance | 30% |
| DC Rated Voltage | 50V |
| Width | 6mm |
| RoHS | Compliant |
