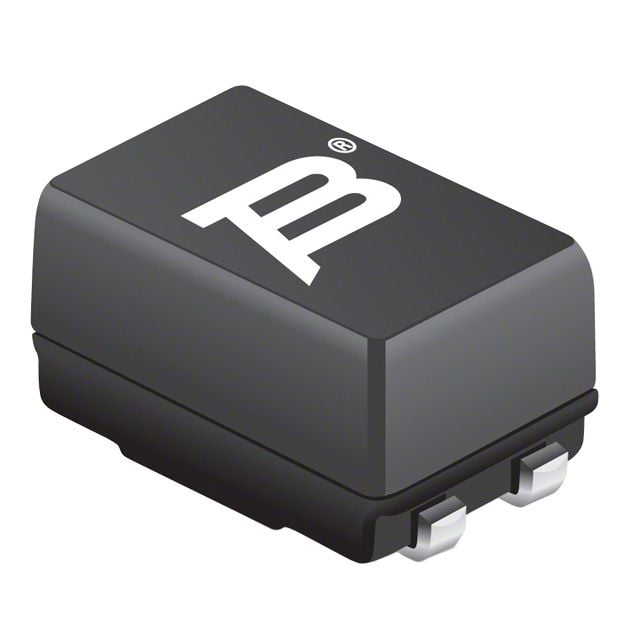

Dual-line common mode choke for power and signal lines, featuring 6.5mH inductance per line with a 50% tolerance. This surface-mount component operates with a 300mA maximum DC current rating and a 5kΩ impedance at 100kHz. Constructed with a ferrite core and polymer material, it offers a 2MHz self-resonant frequency and a 50V DC rated voltage, packaged in a 0905 SMD case. Operating temperature range is -40°C to 105°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bourns SRF0905-652Y datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | 0905 |
| Core Material | Ferrite |
| Current Rating | 300mA |
| Depth | 6.3mm |
| Frequency | 2MHz |
| Height | 5mm |
| Impedance | 5kR |
| Inductance | 6.5mH |
| Length | 9.2mm |
| Material | Polymer |
| Max DC Current | 300mA |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Lines | 2 |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sample Rate (Hz) | 100kHz |
| Self Resonant Frequency | 2MHz |
| Series | SRF0905 |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 50% |
| DC Rated Voltage | 50V |
| Width | 6mm |
| RoHS | Compliant |
