Surface mount shielded wirewound power inductor featuring 10µH inductance with a 20% tolerance. Offers parallel inductance of 10µH and series inductance of 40µH, operating at a frequency of 100KHz. Maximum DC current handling is 5.35A, with a DC resistance of 24.6mΩ (parallel) and 93.4mΩ (series). Constructed with a ferrite core, this component operates within a temperature range of -40°C to 125°C and is supplied in tape and reel packaging.
PackageNonstandard
MountingSurface Mount
Inductance10uH
Quick Jump:
Technical Specifications
Bourns SRF1260-100M technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| DC Resistance (DCR) - Parallel | 24.6mR |
| DC Resistance (DCR) - Series | 93.4mR |
| Depth | 12.5mm |
| Height | 6mm |
| Inductance | 10uH |
| Inductance - Parallel | 10uH |
| Inductance - Series | 40uH |
| Length | 12.5mm |
| Max DC Current | 5.35A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Coils | 2 |
| Package Quantity | 400 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 5.35A |
| RoHS Compliant | Yes |
| Series | SRF1260 |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Width | 12.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Bourns SRF1260-100M Datasheet
Download the complete datasheet for Bourns SRF1260-100M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

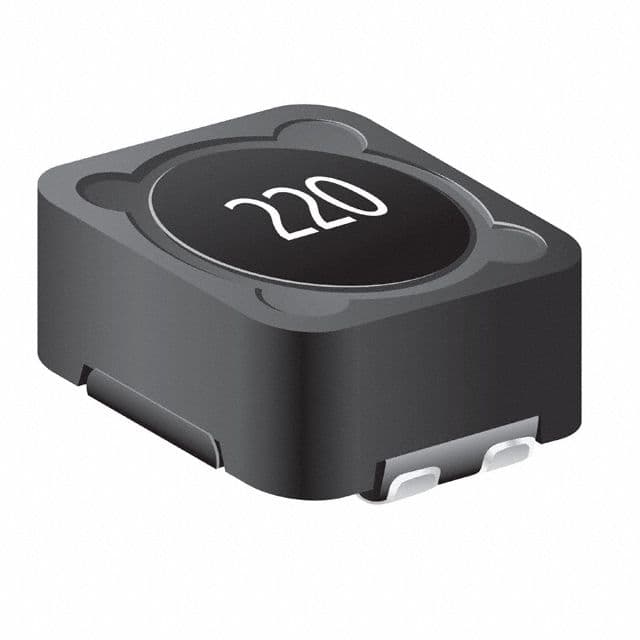

Product Images
