Shielded, general-purpose fixed inductor featuring a ferrite core and surface mount termination. Offers 22µH inductance with a 20% tolerance, designed for a maximum DC current of 3.7A. Operating temperature range spans from -40°C to 125°C. Dimensions are 12.5mm x 12.5mm x 6mm. This RoHS compliant component is supplied on tape and reel.
PackageNonstandard
MountingSurface Mount
Inductance2288uH
Quick Jump:
Technical Specifications
Bourns SRF1260-220M technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| DC Resistance (DCR) - Parallel | 45.1mR |
| DC Resistance (DCR) - Series | 172mR |
| Depth | 12.5mm |
| Height | 6mm |
| Inductance | 2288uH |
| Inductance - Parallel | 22uH |
| Inductance - Series | 88uH |
| Length | 12.5mm |
| Max DC Current | 3.7A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Coils | 2 |
| Package Quantity | 400 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 3.7A |
| RoHS Compliant | Yes |
| Series | SRF1260 |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Width | 12.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Bourns SRF1260-220M Datasheet
Download the complete datasheet for Bourns SRF1260-220M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

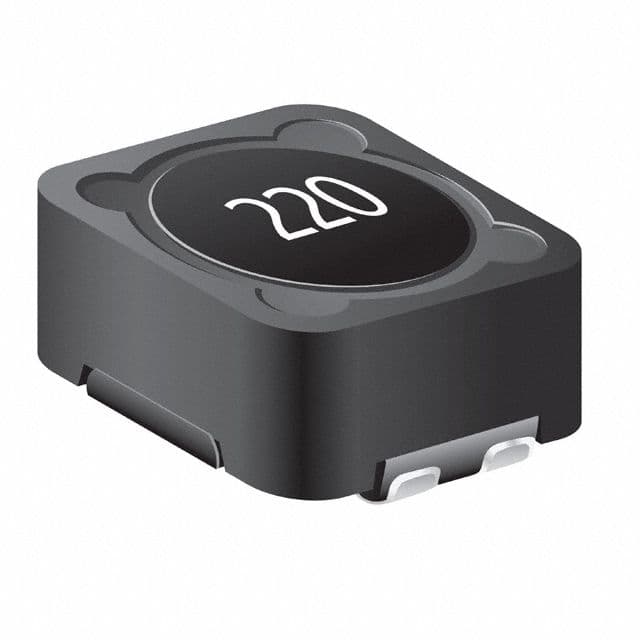

Product Images
