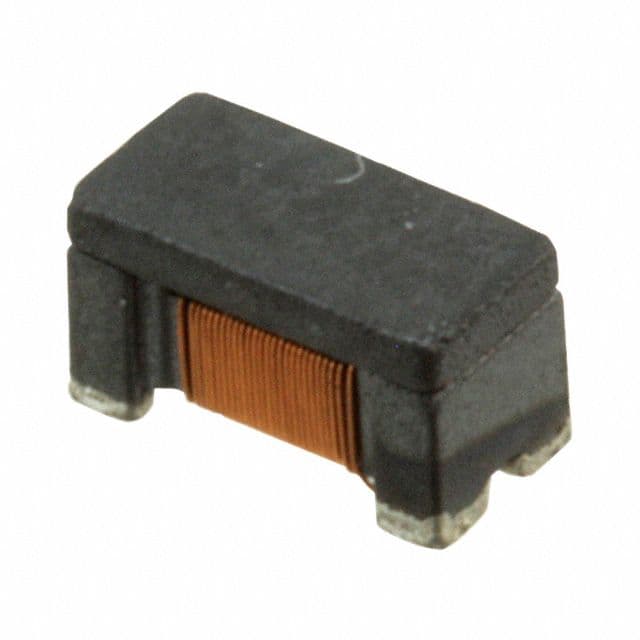

Dual-line common mode choke featuring 1kΩ impedance at 100MHz and 100µH inductance. Surface mountable in a 3216 package with a 230mA current rating and 1Ω DCR. Operates from -55°C to 125°C with a 50V voltage rating. Ferrite core material, RoHS compliant, supplied on tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bourns SRF3216-102Y datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | 3216 |
| Core Material | Ferrite |
| Current Rating | 230mA |
| Depth | 1.8mm |
| Height | 2mm |
| Impedance | 1kR |
| Inductance | 100uH |
| Length | 3.2mm |
| Material | Steel |
| Max Current Rating | 230mA |
| Max DC Current | 230mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Number of Lines | 2 |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SRF3216 |
| Termination | SMD/SMT |
| Test Frequency | 100MHz |
| Tolerance | 25% |
| Voltage Rating (AC) | 50V |
| DC Rated Voltage | 50V |
| Width | 1.6mm |
| RoHS | Compliant |
