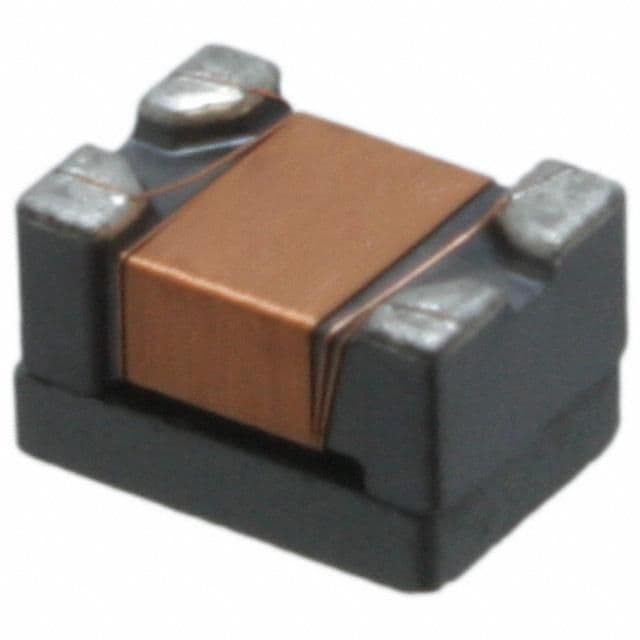

Surface mount EMI/RFI filter featuring 22µH inductance with a 50% tolerance, designed for data line applications. This ferrite-core component offers a 200mA current rating and a low DC resistance of 2.65Ω. Its 4532 (1812 imperial) case code provides a compact footprint with dimensions of 4.5mm length, 2.8mm width, and 3.2mm height. Operating across a temperature range of -40°C to 125°C, it is RoHS compliant and suitable for PCB mounting.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bourns SRF4532-220Y datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Case Code (Imperial) | 1812 |
| Case Code (Metric) | 4532 |
| Package/Case | 4532 |
| Core Material | Ferrite |
| Current Rating | 200mA |
| DC Current | 200mA |
| DC Resistance (DCR) | 2.65R |
| Depth | 3.4mm |
| Height | 3.2mm |
| Impedance | 1kR |
| Inductance | 22uH |
| Inductance Tolerance | -30% |
| Lead Free | Lead Free |
| Length | 4.5mm |
| Material | Steel |
| Max Current Rating | 200mA |
| Max DC Current | 200mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Number of Lines | 2 |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 100kHz |
| Series | SRF4532 |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 50% |
| Voltage Rating (AC) | 50V |
| Width | 2.8mm |
| RoHS | Compliant |
