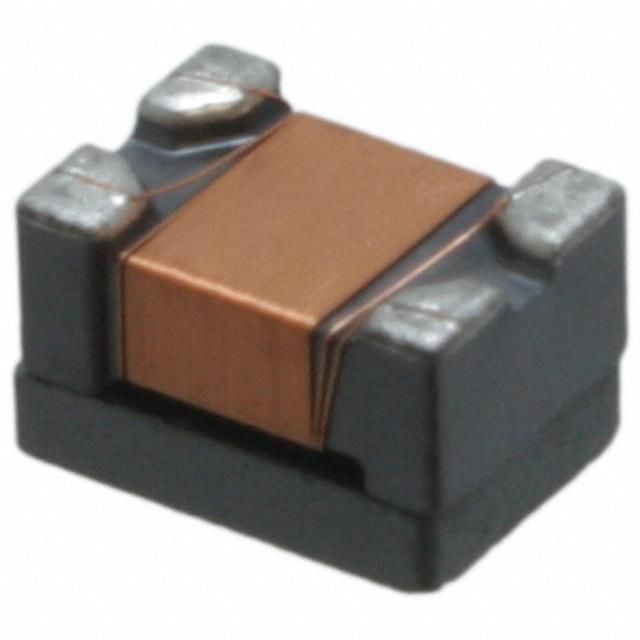

Dual common mode choke with 51µH inductance and 2kΩ impedance at 100kHz. Designed for power and signal lines, this surface mount component features a ferrite core and a 200mA current rating. It offers a low DC resistance of 3.5Ω and operates within a temperature range of -40°C to 125°C. The 4532 package is supplied on tape and reel, with a 50V voltage rating.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bourns SRF4532-510Y datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Bourns SRF4532-510Y technical specifications.
| Package/Case | 4532 |
| Core Material | Ferrite |
| Current | 200mA |
| Current Rating | 200mA |
| DC Current | 200mA |
| DC Resistance (DCR) | 3.5R |
| Depth | 3.4mm |
| Height | 0.118inch |
| Impedance | 2kR |
| Inductance | 51uH |
| Lead Free | Lead Free |
| Length | 4.5mm |
| Material | Steel |
| Max Current Rating | 200mA |
| Max DC Current | 200mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Number of Lines | 2 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 200mA |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 100kHz |
| Series | SRF4532 |
| Series Resistance | 3.5R |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 50% |
| Voltage Rating (AC) | 50V |
| DC Rated Voltage | 50V |
| Width | 2.8mm |
| RoHS | Compliant |
