The SRN4012-1R5M is a shielded ferrite inductor with a 1.5uH inductance value and a 20% tolerance. It has a maximum DC current rating of 2A and can operate at temperatures up to 125°C. This inductor is designed for surface mount applications and is packaged on a tape and reel. It is compliant with RoHS regulations but not Reach SVHC compliant.
PackageNonstandard
MountingSurface Mount
Inductance1.5uH
Quick Jump:
Technical Specifications
Bourns SRN4012-1R5M technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| DC Current | 2A |
| DC Resistance (DCR) | 60mR |
| Depth | 4.3mm |
| Inductance | 1.5uH |
| Inductance Tolerance | 20% |
| Length | 4.3mm |
| Max DC Current | 2A |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 2A |
| RoHS Compliant | Yes |
| Saturation Current | 2.2A |
| Series | SRN4012 |
| Shielding | Shielded |
| Test Frequency | 100kHz |
| Tolerance | 20% |
Compliance
| RoHS | Compliant |
Datasheet
Bourns SRN4012-1R5M Datasheet
Download the complete datasheet for Bourns SRN4012-1R5M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

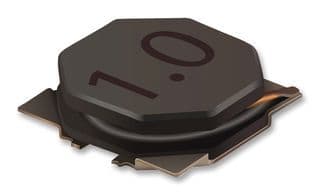

Product Images
