Surface mount fixed inductor featuring 47µH inductance with a 20% tolerance, designed for 100kHz operation. This semi-shielded, wirewound component utilizes a ferrite core and steel material, offering a 600mA current rating and 0.78Ω DC resistance. Operating within a -25°C to 120°C temperature range, it measures 4mm x 4.2mm x 1.8mm and is supplied on tape and reel.
PackageNonstandard
Current Rating600mA
MountingSurface Mount
Inductance47uH
Quick Jump:
Technical Specifications
Bourns SRN4018-470M technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current Rating | 600mA |
| DC Resistance (DCR) | 780mR |
| Depth | 4.2mm |
| Height | 1.8mm |
| Height - Seated (Max) | 0.071inch |
| Inductance | 47uH |
| Inductance Tolerance | 20% |
| Length | 4mm |
| Material | Steel |
| Max DC Current | 600mA |
| Max Operating Temperature | 120°C |
| Min Operating Temperature | -25°C |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Cut Tape |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 600mA |
| RoHS Compliant | Yes |
| Sample Rate (Hz) | 100kHz |
| Saturation Current | 620mA |
| Self Resonant Frequency | 10MHz |
| Series | SRN4018 |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Bourns SRN4018-470M Datasheet
Download the complete datasheet for Bourns SRN4018-470M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

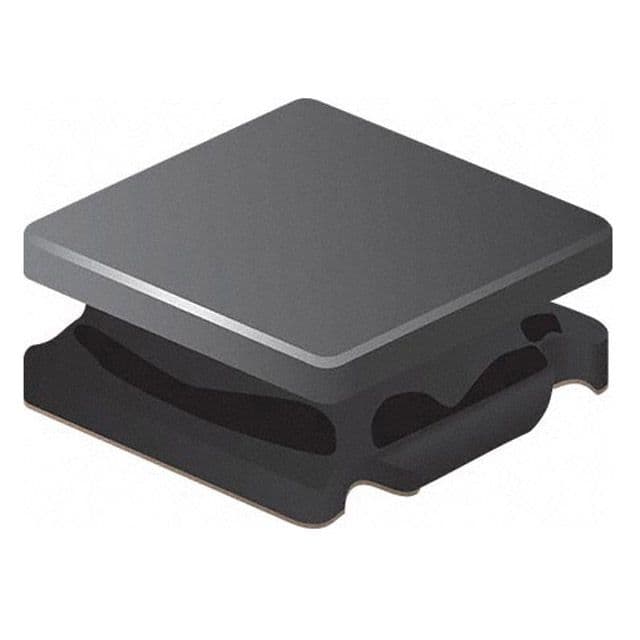

Product Images
