Surface mount fixed inductor featuring 100µH inductance with a 20% tolerance, designed for power applications. This semi-shielded wirewound component utilizes a ferrite core and operates at a test frequency of 100kHz, offering a Q-factor of 22. It supports a maximum DC current of 700mA with a DC resistance of 494mΩ. The component is housed in a nonstandard package with dimensions of 6.2mm depth, 4.5mm height, and 6mm length, suitable for surface mounting.
PackageNonstandard
Current Rating700mA
MountingSurface Mount
Inductance100uH
Quick Jump:
Technical Specifications
Bourns SRN6045-101M technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current Rating | 700mA |
| DC Current | 700mA |
| DC Resistance (DCR) | 494mR |
| Depth | 6.2mm |
| Height | 4.5mm |
| Height - Seated (Max) | 0.177inch |
| Inductance | 100uH |
| Inductance Tolerance | 20% |
| Length | 6mm |
| Material | Steel |
| Max DC Current | 700mA |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 700mA |
| RoHS Compliant | Yes |
| Sample Rate (Hz) | 100kHz |
| Saturation Current | 800mA |
| Self Resonant Frequency | 5MHz |
| Series | SRN6045 |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Weight | 0.027725oz |
| Width | 6mm |
Compliance
| RoHS | Compliant |
Datasheet
Bourns SRN6045-101M Datasheet
Download the complete datasheet for Bourns SRN6045-101M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

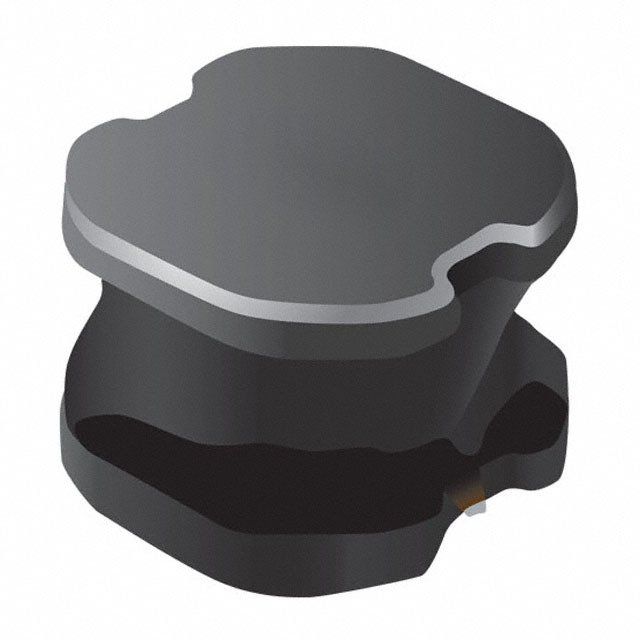

Product Images
