General purpose shielded inductor with 47µH inductance and 20% tolerance. Features a ferrite core, surface mount termination, and a 1.1A current rating. Operates within a -40°C to 125°C temperature range. Dimensions are 6mm x 6mm x 4.5mm. This component is RoHS compliant.
PackageNonstandard
Current Rating1.1A
MountingSurface Mount
Inductance47uH
Quick Jump:
Technical Specifications
Bourns SRN6045-470M technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current Rating | 1.1A |
| DC Resistance (DCR) | 257mR |
| Depth | 6mm |
| Height | 4.5mm |
| Height - Seated (Max) | 0.177inch |
| Inductance | 47uH |
| Inductance Tolerance | 30% |
| Length | 6mm |
| Max DC Current | 1.1A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Q Factor | 13 |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 1.1A |
| RoHS Compliant | Yes |
| Saturation Current | 1.3A |
| Self Resonant Frequency | 7MHz |
| Series | SRN6045 |
| Series Resistance | 257mR |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 6mm |
Compliance
| RoHS | Compliant |
Datasheet
Bourns SRN6045-470M Datasheet
Download the complete datasheet for Bourns SRN6045-470M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

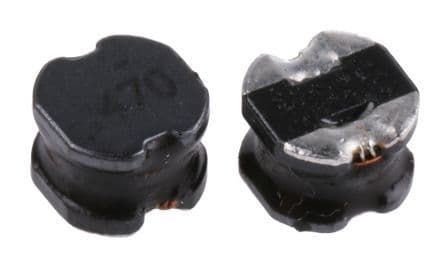

Product Images
