Surface mount power inductor featuring 2.2µH inductance with a 20% tolerance, designed for automotive applications and AEC-Q200 qualified. This shielded, wirewound component utilizes a ferrite and carbonyl powder core, offering a 16A current rating and a low 8mΩ DC resistance. It operates within a temperature range of -40°C to 150°C and has a Q factor of 20 at 100kHz. The inductor measures 13.5mm in length, 12.5mm in width, and 3.3mm in height, supplied in tape and reel packaging.
PackageNonstandard
Current Rating16A
MountingSurface Mount
Inductance2.2uH
Quick Jump:
Technical Specifications
Bourns SRP1238A-2R2M technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite, Carbonyl Powder |
| Current Rating | 16A |
| DC Resistance (DCR) | 8mR |
| Depth | 12.5mm |
| Height | 3.3mm |
| Height - Seated (Max) | 0.138inch |
| Inductance | 2.2uH |
| Inductance Tolerance | 20% |
| Length | 13.5mm |
| Max DC Current | 16A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Q Factor | 20 |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 16A |
| RoHS Compliant | Yes |
| Saturation Current | 29A |
| Self Resonant Frequency | 25MHz |
| Series | SRP1238A |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 12.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Bourns SRP1238A-2R2M Datasheet
Download the complete datasheet for Bourns SRP1238A-2R2M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

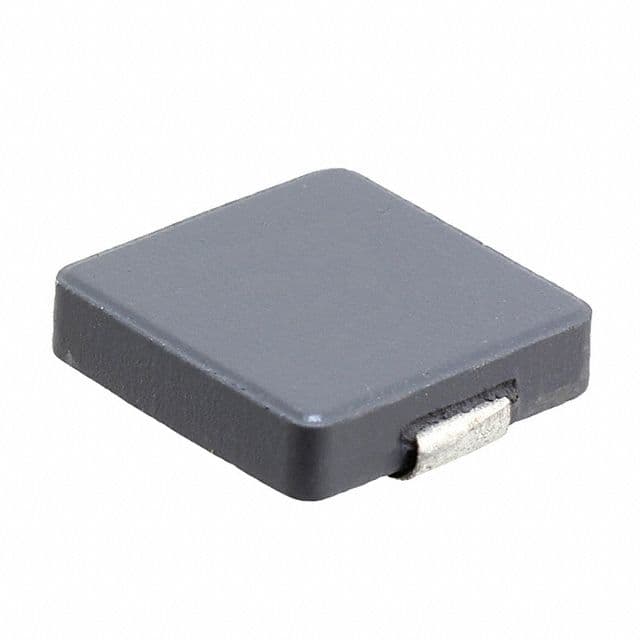

Product Images
