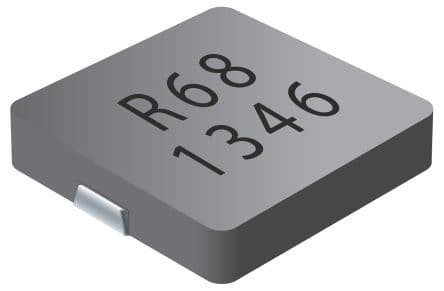

Surface mount shielded wirewound power inductor with 680nH inductance and 20% tolerance, designed for automotive applications. Features a carbonyl powder core, 28A maximum DC current rating, and a low DC resistance of 2.5mR. Operates across a wide temperature range of -40°C to 150°C and meets AEC-Q200 standards. This inductor is RoHS compliant and packaged in cut tape.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bourns SRP1238A-R68M datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | Nonstandard |
| Core Material | Carbonyl Powder |
| DC Resistance (DCR) | 2.5mR |
| Depth | 12.5mm |
| Height | 3.3mm |
| Inductance | 680nH |
| Inductance Tolerance | 20% |
| Length | 13.5mm |
| Max DC Current | 28A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Packaging | Cut Tape |
| Q Factor | 15 |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 28A |
| RoHS Compliant | Yes |
| Saturation Current | 49A |
| Self Resonant Frequency | 50MHz |
| Series | SRP1238A |
| Series Resistance | 2.5mR |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| RoHS | Compliant |
