Surface mount shielded wirewound power inductor with 2.2µH inductance and 20% tolerance, designed for automotive applications. Features a carbonyl powder core, 22A current rating, and low 4.2mΩ DCR. Operates across a wide temperature range of -40°C to 150°C, with a saturation current of 37A and a self-resonant frequency of 23MHz. Packaged in cut tape for automated assembly.
PackageNonstandard
Current Rating22A
MountingSurface Mount
Inductance2.2uH
Quick Jump:
Technical Specifications
Bourns SRP1265A-2R2M technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Carbonyl Powder |
| Current Rating | 22A |
| DC Current | 22A |
| DC Resistance (DCR) | 4.2mR |
| Depth | 12.8mm |
| Height | 6.2mm |
| Height - Seated (Max) | 0.252inch |
| Inductance | 2.2uH |
| Inductance Tolerance | 20% |
| Length | 0.531inch |
| Max DC Current | 22A |
| Max Operating Temperature | 150°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Packaging | Cut Tape |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 22A |
| RoHS Compliant | Yes |
| Saturation Current | 37A |
| Self Resonant Frequency | 23MHz |
| Series | SRP1265A |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 0.492inch |
Compliance
| RoHS | Compliant |
Datasheet
Bourns SRP1265A-2R2M Datasheet
Download the complete datasheet for Bourns SRP1265A-2R2M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

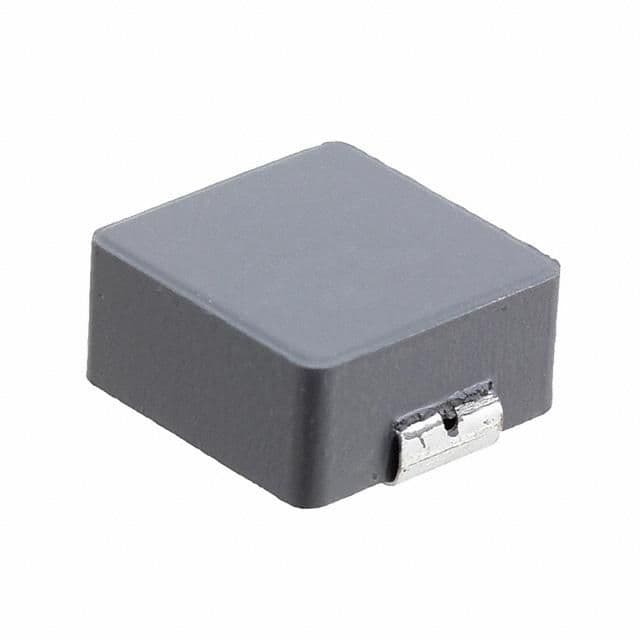

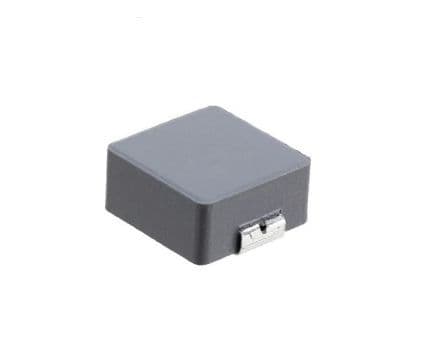

Product Images
