Shielded, general-purpose inductor with 4.7µH inductance and 20% tolerance. Features a carbonyl powder core and a maximum DC current rating of 13.5A. Surface mountable with a low DC resistance of 8.4mΩ. Operates across a wide temperature range of -40°C to 150°C and is AEC-Q200 qualified.
PackageNonstandard
Current Rating13.5A
MountingSurface Mount
Inductance4.7uH
Quick Jump:
Technical Specifications
Bourns SRP1265A-4R7M technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Carbonyl Powder |
| Current Rating | 13.5A |
| DC Current | 13.5A |
| DC Resistance (DCR) | 8.4mR |
| Depth | 12.8mm |
| Height | 6.2mm |
| Height - Seated (Max) | 0.252inch |
| Inductance | 4.7uH |
| Inductance Tolerance | 20% |
| Length | 0.531inch |
| Max DC Current | 13.5A |
| Max Operating Temperature | 150°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 13.5A |
| RoHS Compliant | Yes |
| Saturation Current | 28A |
| Self Resonant Frequency | 17MHz |
| Series | SRP1265A |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 0.492inch |
Compliance
| RoHS | Compliant |
Datasheet
Bourns SRP1265A-4R7M Datasheet
Download the complete datasheet for Bourns SRP1265A-4R7M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

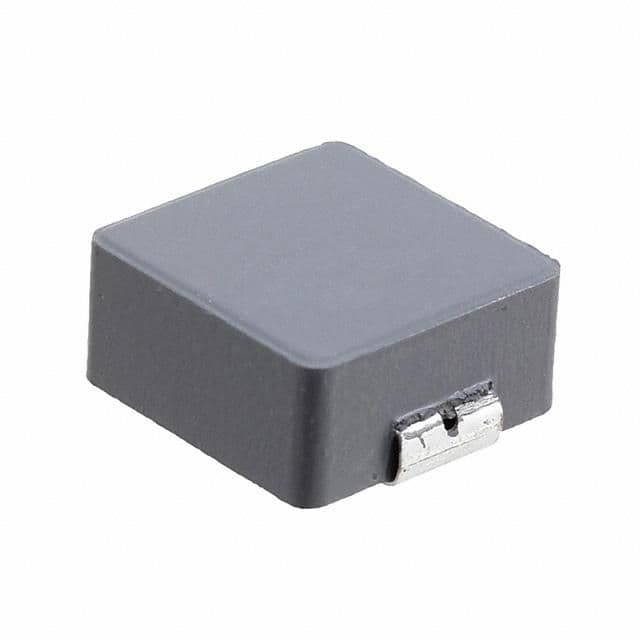

Product Images
