Technical Specifications

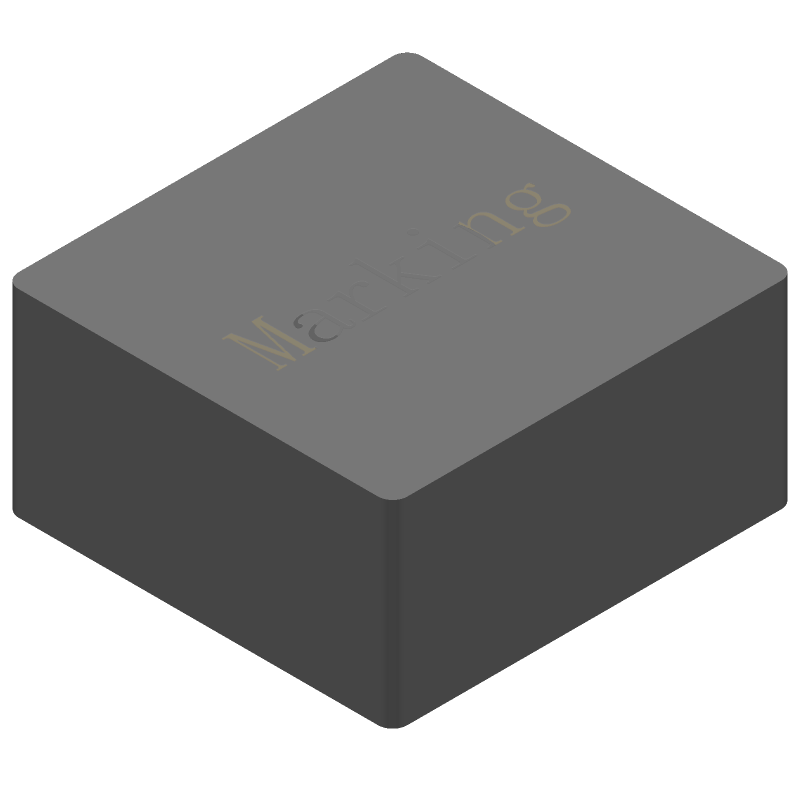

Bourns SRP5030CA-R56M technical specifications.
General
| Max Operating Temperature | 155 |
| Number of Terminals | 2 |
| Min Operating Temperature | -55 |
| Number of Functions | 1 |
| Package Length | 5.5 |
| Tolerance | 20 |
| Package Width | 5.3 |
| Package Height | 2.9 |
| Terminal Placement | DUAL ENDED |
| Inductance-Nom (L) | 0.56 |
| Inductor Type | GENERAL PURPOSE INDUCTOR |
| Shielded | YES |
| Inductor Application | POWER INDUCTOR |
| DC Resistance | 0.00452 |
| Rated Current-Max | 17.7 |
| Test Frequency | 0.1 |
| Self Resonance Frequency | 73 |
Compliance
| RoHS | Yes |
| REACH | Compliant |
| Military Spec | False |
