Shielded, general-purpose inductor featuring 2.2mH inductance with a 10% tolerance. This ferrite-core component offers a DC current rating of 400mA and a saturation current of 420mA. It operates within a temperature range of -40°C to 125°C and has a DC resistance of 4.2 Ohms. Designed for surface mount applications, it is packaged on tape and reel.
Frequency650kHz
PackageNonstandard
Current280mA
Resistance4.2R
Quick Jump:
Technical Specifications
Bourns SRR1208-222KL technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
Current
280mA
Current Rating
400mA
DC Current
400mA
DC Resistance (DCR)
4.2R
Depth
13mm
Frequency
650kHz
Height
8.5mm
Height - Seated (Max)
0.335inch
Inductance
2.2mH
Inductance Tolerance
10%
Length
12.7mm
Material
Steel
Max DC Current
400mA
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
400
Packaging
Tape and Reel
Q Factor
20
Reach SVHC Compliant
No
Resistance
4.2R
RMS Current (Irms)
400mA
RoHS Compliant
Yes
Sample Rate (Hz)
1kHz
Saturation Current
420mA
Self Resonant Frequency
650kHz
Series
SRR1208
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
1kHz
Tolerance
10%
Width
12.7mm
Compliance
RoHS
Compliant
Datasheet
Bourns SRR1208-222KL Datasheet
Download the complete datasheet for Bourns SRR1208-222KL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

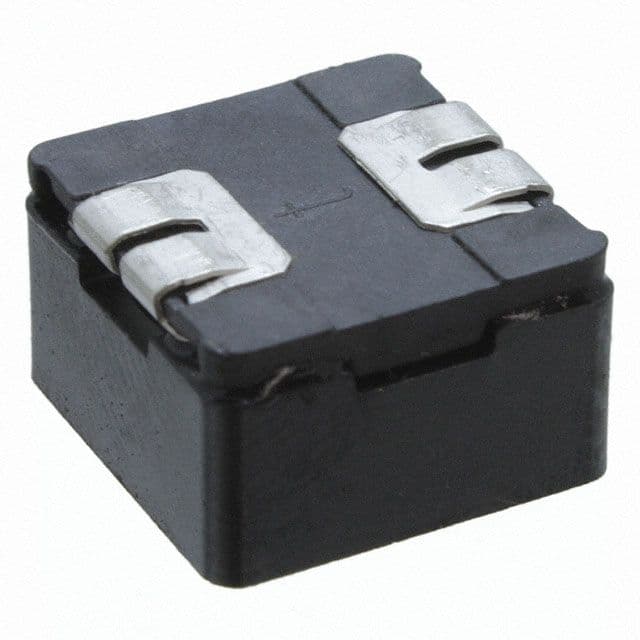

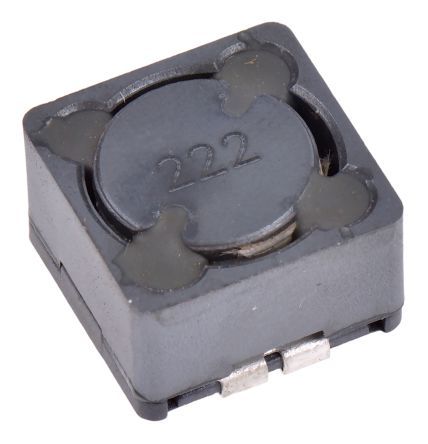

Product Images
