Surface mount shielded wirewound power inductor with 2.5µH inductance and 20% tolerance. Features a ferrite core, 7.5A current rating, and 10A saturation current. Offers low 0.011Ω DCR and a Q factor of 20 at 1kHz. Operates from -40°C to 125°C and is supplied in tape and reel packaging.
Package1208
Current Rating7.5A
MountingSurface Mount
Inductance2.5uH
Quick Jump:
Technical Specifications
Bourns SRR1208-2R5ML technical specifications.
General
| Package/Case | 1208 |
| Core Material | Ferrite |
| Current Rating | 7.5A |
| DC Current | 7.5A |
| DC Resistance (DCR) | 11mR |
| Depth | 13mm |
| Height | 8.5mm |
| Inductance | 2.5uH |
| Length | 12.7mm |
| Max DC Current | 7.5A |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Q Factor | 20 |
| RoHS Compliant | Yes |
| Saturation Current | 10A |
| Self Resonant Frequency | 37MHz |
| Series | SRR1208 |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 1kHz |
| Tolerance | 20% |
| Width | 12.7mm |
Compliance
| RoHS | Compliant |
Datasheet
Bourns SRR1208-2R5ML Datasheet
Download the complete datasheet for Bourns SRR1208-2R5ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

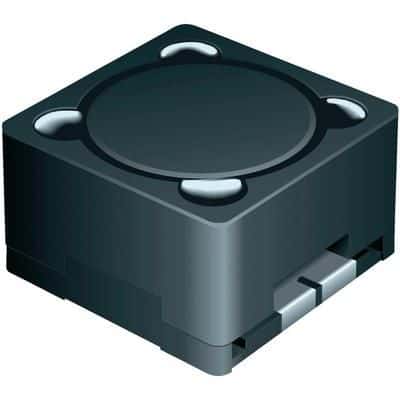

Product Images
