Surface mount fixed inductor featuring 6.5µH inductance with a 20% tolerance, designed for power applications. This wirewound ferrite core component offers a 6A current rating and a low 18mΩ DC resistance. Operating across a wide temperature range of -40°C to 125°C, it provides a 20 Q-factor at 1kHz and a saturation current of 8.4A. Packaged in a 1208 case, it is supplied on tape and reel.
Package1208
Current Rating6A
MountingSurface Mount
Inductance6.5uH
Quick Jump:
Technical Specifications
Bourns SRR1208-6R5ML technical specifications.
General
| Package/Case | 1208 |
| Core Material | Ferrite |
| Current Rating | 6A |
| DC Current | 6A |
| DC Resistance (DCR) | 18mR |
| Depth | 13mm |
| Height | 8.5mm |
| Height - Seated (Max) | 0.335inch |
| Inductance | 6.5uH |
| Inductance Tolerance | 20% |
| Length | 12.7mm |
| Max DC Current | 6A |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 400 |
| Packaging | Tape and Reel |
| Q Factor | 20 |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 6A |
| RoHS Compliant | Yes |
| Saturation Current | 8.4A |
| Self Resonant Frequency | 20MHz |
| Series | SRR1208 |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 1kHz |
| Tolerance | 20% |
| Width | 12.7mm |
Compliance
| RoHS | Compliant |
Datasheet
Bourns SRR1208-6R5ML Datasheet
Download the complete datasheet for Bourns SRR1208-6R5ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

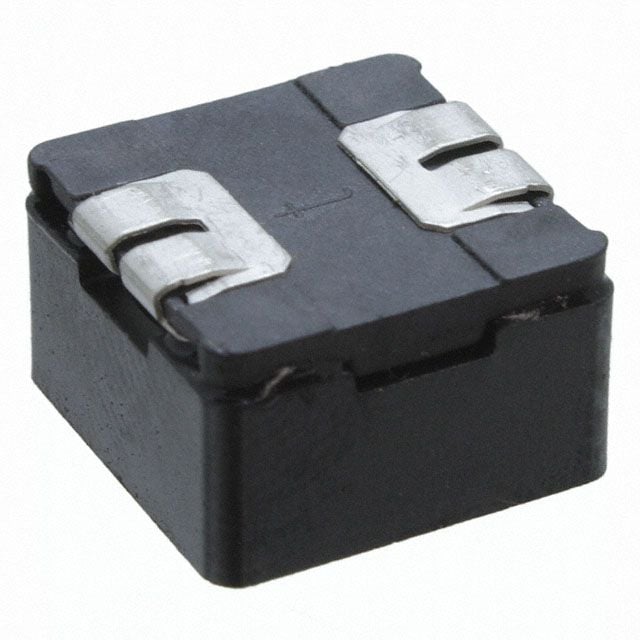

Product Images
