Surface mount shielded wirewound power inductor with 10µH inductance and 20% tolerance. Features a ferrite core, 6.5A DC current rating, and 18mΩ DC resistance. Operates from -40°C to 125°C with a Q factor of 16 at 100kHz. Packaged in tape and reel.
PackageNonstandard
Current11A
Current Rating6.5A
MountingSurface Mount
Quick Jump:
Technical Specifications
Bourns SRR1210-100M technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current | 11A |
| Current Rating | 6.5A |
| DC Current | 6.5A |
| DC Resistance (DCR) | 18mR |
| Depth | 12.5mm |
| Height | 10mm |
| Height - Seated (Max) | 0.394inch |
| Inductance | 10uH |
| Inductance Tolerance | 20% |
| Length | 0.472inch |
| Max DC Current | 6.5A |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Q Factor | 16 |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 6.5A |
| RoHS Compliant | Yes |
| Saturation Current | 6.5A |
| Self Resonant Frequency | 12MHz |
| Series | SRR1210 |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 12mm |
Compliance
| RoHS | Compliant |
Datasheet
Bourns SRR1210-100M Datasheet
Download the complete datasheet for Bourns SRR1210-100M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

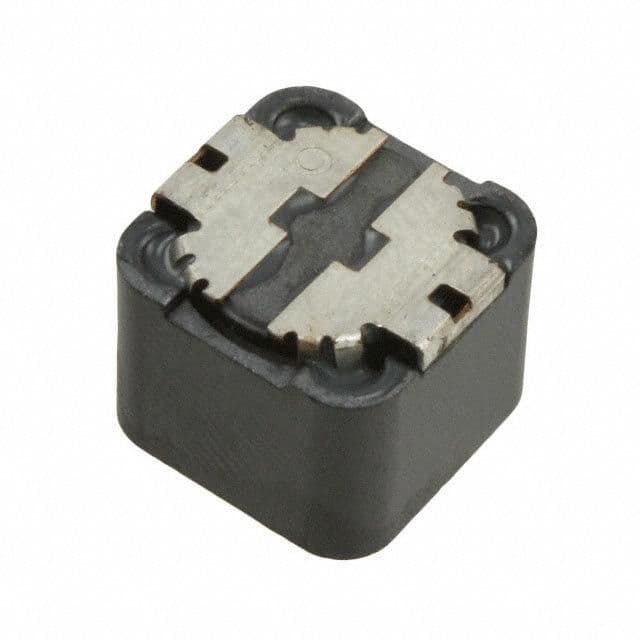

Product Images
