Shielded, ferrite-core general-purpose inductor with 150µH inductance and 20% tolerance. Features a 2.2A DC current rating, 1.8A saturation current, and 9.5A current. Operates within a -40°C to 125°C temperature range. Surface mountable with SMD/SMT termination, presented in tape and reel packaging.
PackageNonstandard
Current9.5A
MountingSurface Mount
Inductance150uH
Quick Jump:
Technical Specifications
Bourns SRR1210-151M technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current | 9.5A |
| DC Current | 2.2A |
| DC Resistance (DCR) | 190mR |
| Depth | 12.5mm |
| Height | 10mm |
| Inductance | 150uH |
| Inductance Tolerance | 20% |
| Length | 12mm |
| Max DC Current | 2.2A |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Q Factor | 12 |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 2.2A |
| RoHS Compliant | Yes |
| Saturation Current | 1.8A |
| Self Resonant Frequency | 2.2MHz |
| Series | SRR1210 |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 12mm |
Compliance
| RoHS | Compliant |
Datasheet
Bourns SRR1210-151M Datasheet
Download the complete datasheet for Bourns SRR1210-151M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

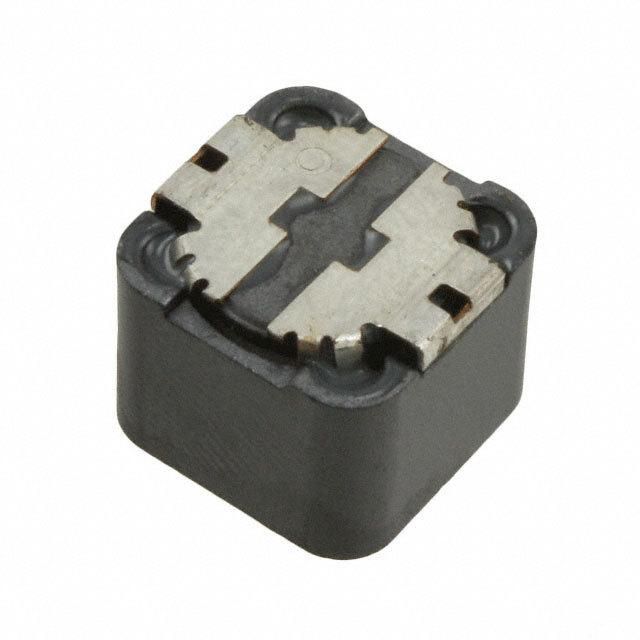

Product Images
