Surface mount fixed inductor with 5.6µH inductance and 30% tolerance. Features a ferrite core, shielded construction, and 8A current rating. DC resistance is 14mΩ, with a Q factor of 12 at 100kHz. Operating temperature range is -40°C to 125°C. Packaged in tape and reel for automated assembly.
Package1210
Current Rating8A
MountingSurface Mount
Inductance5.6uH
Quick Jump:
Technical Specifications
Bourns SRR1210-5R6Y technical specifications.
General
| Package/Case | 1210 |
| Core Material | Ferrite |
| Current Rating | 8A |
| DC Resistance (DCR) | 14mR |
| Depth | 12mm |
| Height | 10mm |
| Inductance | 5.6uH |
| Length | 12mm |
| Max DC Current | 8A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Q Factor | 12 |
| RoHS Compliant | Yes |
| Saturation Current | 8.5A |
| Self Resonant Frequency | 28MHz |
| Series | SRR1210 |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 30% |
| Width | 12mm |
Compliance
| RoHS | Compliant |
Datasheet
Bourns SRR1210-5R6Y Datasheet
Download the complete datasheet for Bourns SRR1210-5R6Y to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

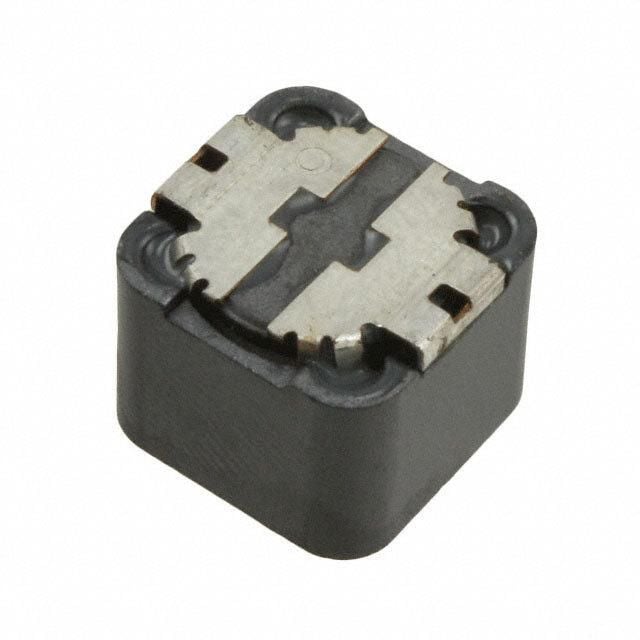

Product Images
