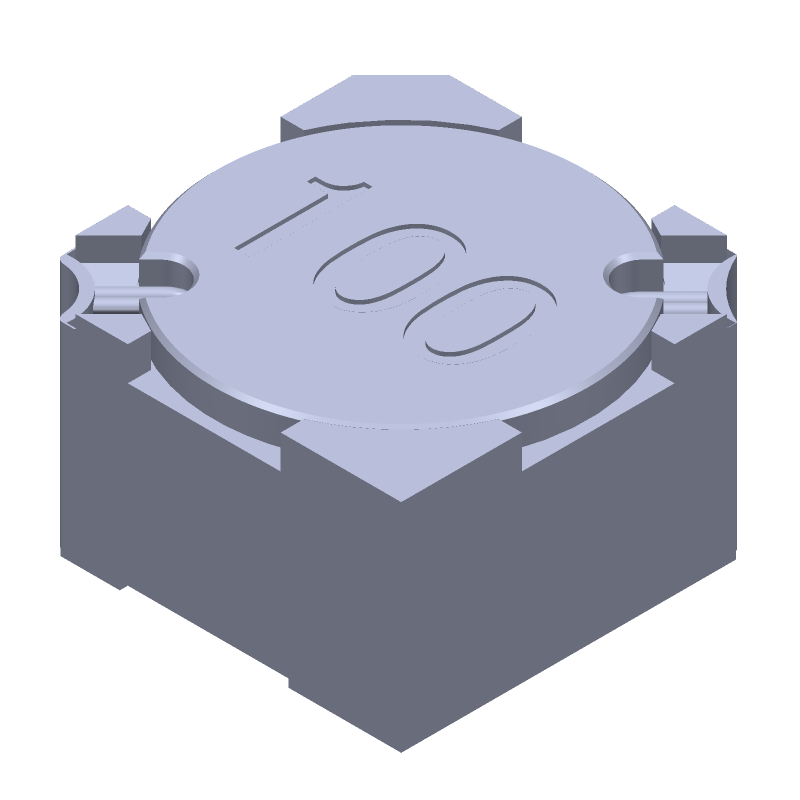

The SRR4528A-100M is a general purpose inductor from Bourns with a maximum operating temperature of 125 degrees Celsius and a minimum operating temperature of -40 degrees Celsius. It features a dual ended terminal placement and a shielded design. The inductor has a nominal inductance of 10uH and a self resonance frequency of 35 MHz. It is rated for a maximum current of 1.76A and has a DC resistance of 0.088 ohms.
Quick Jump:
Technical Specifications
Bourns SRR4528A-100M technical specifications.
General
| Max Operating Temperature | 125 |
| Number of Terminals | 2 |
| Min Operating Temperature | -40 |
| Number of Functions | 1 |
| Package Length | 5 |
| Tolerance | 20 |
| Package Width | 5 |
| Package Height | 2.8 |
| Terminal Placement | DUAL ENDED |
| Inductance-Nom (L) | 10 |
| Inductor Type | GENERAL PURPOSE INDUCTOR |
| Shielded | YES |
| Inductor Application | POWER INDUCTOR |
| DC Resistance | 0.088 |
| Rated Current-Max | 1.76 |
| Test Frequency | 0.1 |
| Self Resonance Frequency | 35 |
Compliance
| RoHS | Yes |
| REACH | Compliant |
| Military Spec | False |
